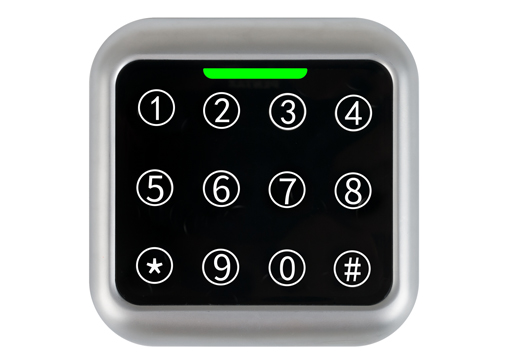

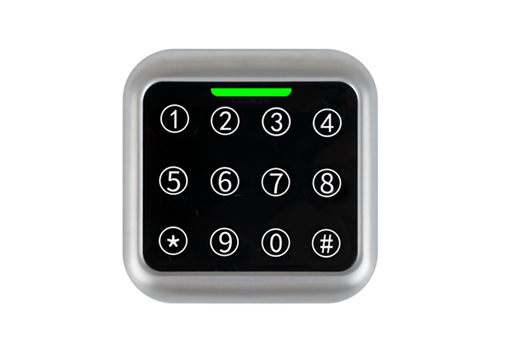

FC-392E/M Metal Access Controller
FC-392E/M metal access controller is designed for electric lock and security system, unique metal shell, flexible keyboard, built-in high-end micro-processor, anti-interference ability, safety and reliability are very high with the self diagnosis and self protection.

FC-392E/M metal access controller support unlock by card (including EM card, EMcompatible card, EM format encryption card), password, card + password. It canset the programming on the keyboard, no need computer, easy operation.

Product Introduction

Metal access control

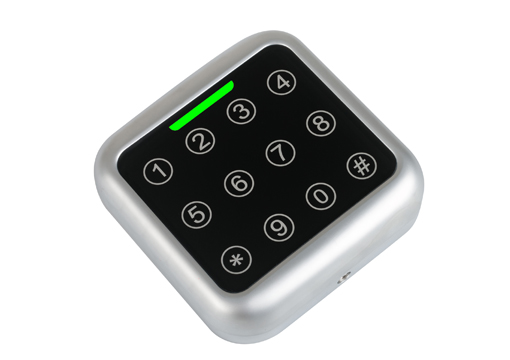

FC-392E/M Metal Access Controller


FC-392E Metal Access Control is designed for electric door locks and security systems, use unique metal shell design, flexible keyboard operation, build in high-grade microprocessor and it have anti-interference ability, security and reliability are very high, can self diagnosis and self-protection, support unlock by card (including EM card, EMcompatible card, EM format encryption card), password, card + password. It canset the programming on the keyboard, no need computer, easy operation.

Keyboard self-locking function, user can set the keyboard input error times and preset the keyboard self locking time to prevent others detect the password. Tamperalarm function, remove the equipment in the working status, it will alarm output and sound. Have superior interference function and self-protection function,to ensure the system running safely and efficiently. Data maximum can storage110 groups (including card data, password data, card + password data), it canbe keep if power cut and the access controller also support doorbell output. FC-392 metal access controller with powerful function, easy installation, is suitable foroffices, homes and public spaces.

Product Parameters

Working Vlotage: DC9-15V

Woring Current: <150mA

Working Temperature: -10℃-75℃

Reading Speed: <0.2s

User Capacity: 10,000 groups

Exit Button: Support

Door Sensor Alarm: Support

Admin card: Support

Data backup: Support

Wireless Remote Controller: Support

Alarm Output: Support

Offline Operation: Support

Issuing Device: Keyboard、Admin

Size:86.1×86.1×21.5mm

Produtc Size:

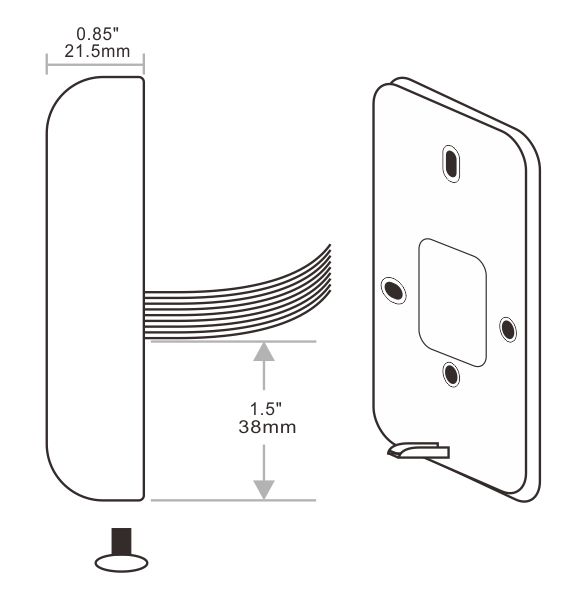

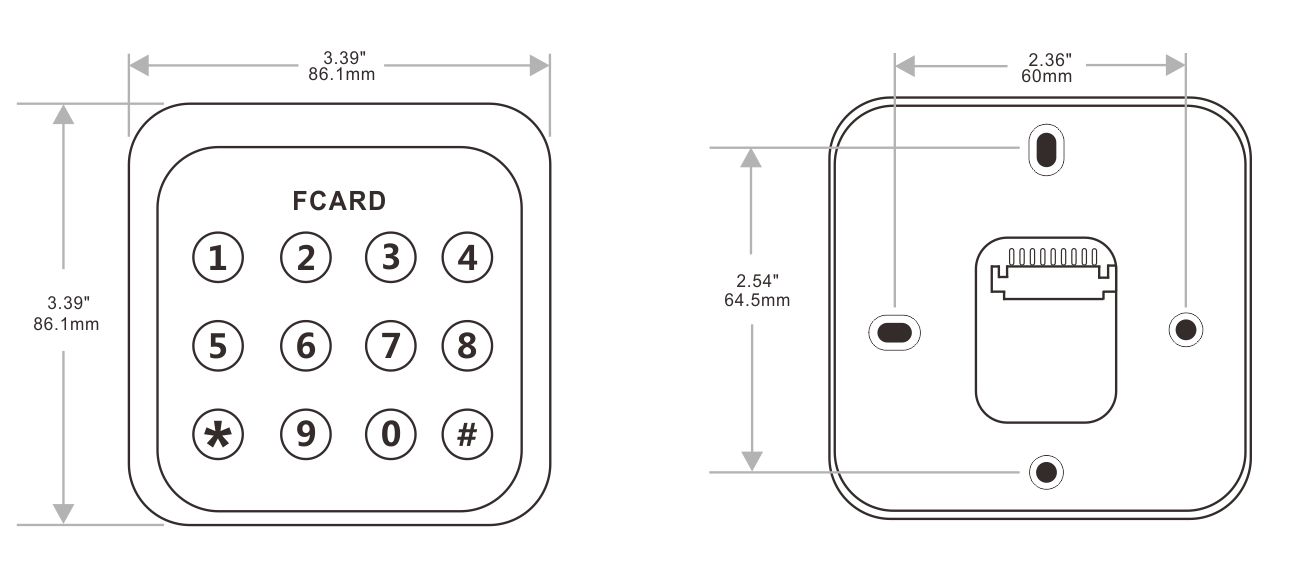

Access Controller Size

Access Controller

Wiring Diagram

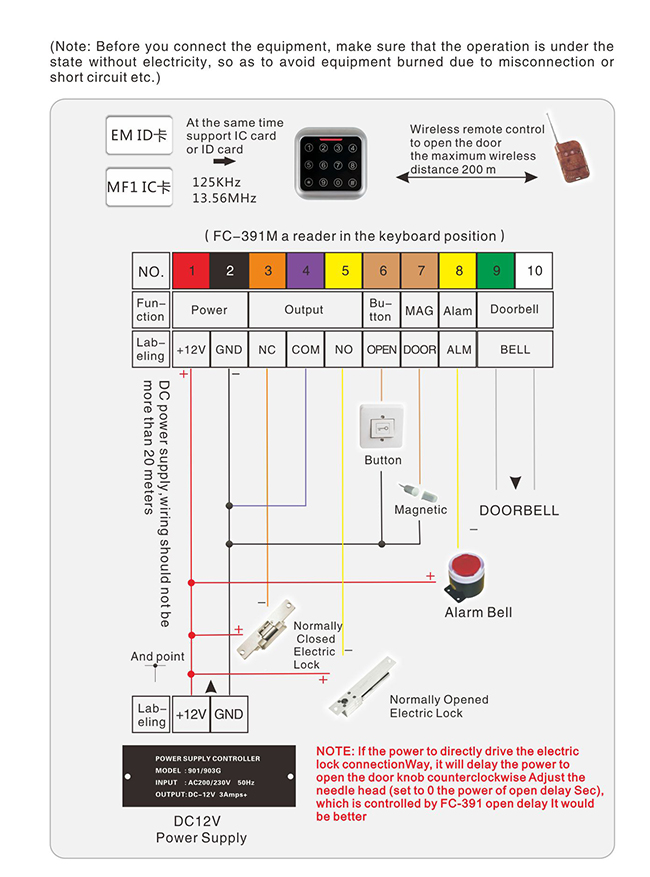

Access Controller Wiring Diagram

Wiring Port

+12V: Power supply anode, input range: DC9-13.8V.

GND: Power supply cathode, it's also the common point of the signal.

NC: Normally close point of the relays, current load is DC3A/30V.

COM: Common point of the relays, current load is DC3A/30V;

NO: Normally open point of the relays, current load is DC3A/30V.

PUSH: Exit Button, low level unlock.

DOOR: Door status switch, connected with magnet,low level means door shut.

ALM: Alarm output port, low level there is alarm, current load is 100ma.

WGO:Wiegand 26 output data line(data 0).

FIRE: Connect the alarm signal (Connect GND trigger).

BELL: Connected with doorbell.


Indicator Light:

1. FCARD: Power indicator, blue light.

2. Doorbell: card indicator, green light means unlock.

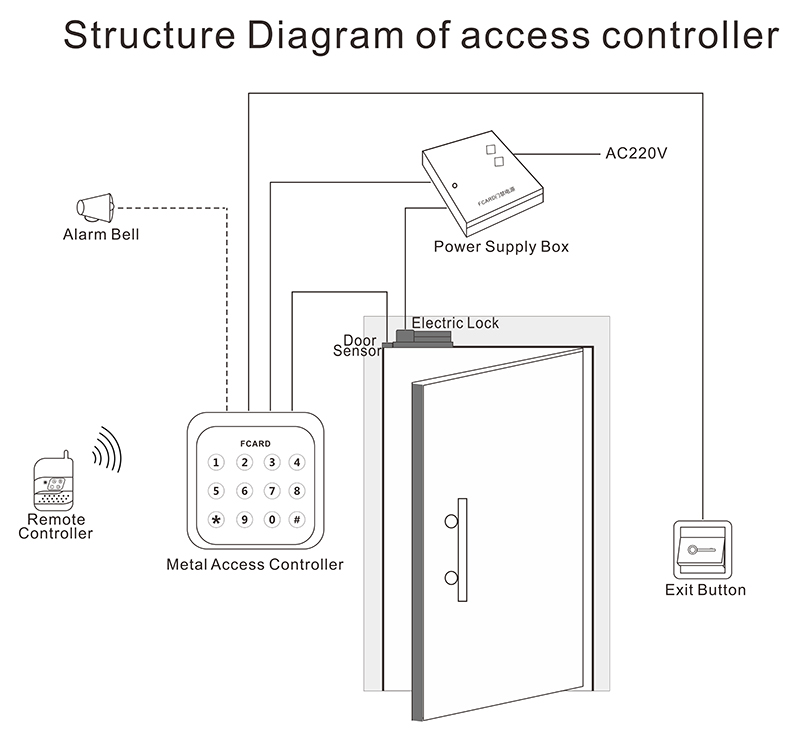

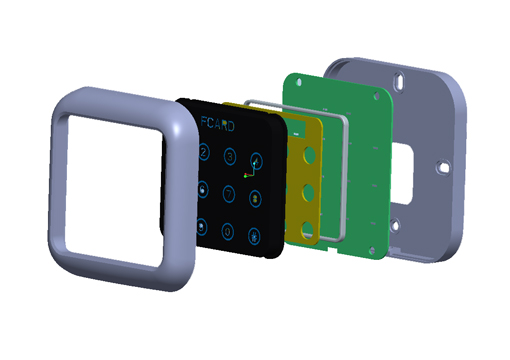

Structure Diagram:

Access Controller
