FCL-280KG Single Door Electromagnetic Lock
All series electromagnetic locks include one year warranty and are available in 350lbs, 600lbs,800lbs, and 1200lbs holding force.

Electromagnetic Lock have the epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.

Product Introduction

Electric Lock

FCL-280KG Single Door Electromagnetic Lock


All Eeries Electromagnetic lock include one year warranty and are available in 350lbs, 600lbs,800lbs, and 1200lbs holding force. Compatible with any access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.

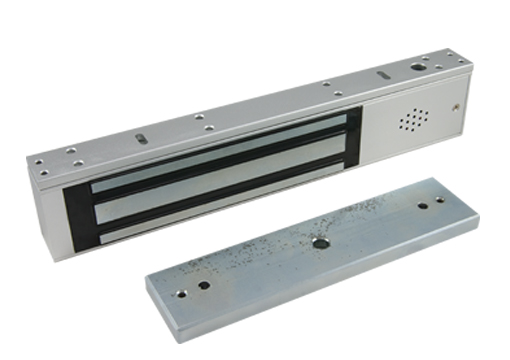

FCL-280KG Single Door Electromagnetic Lock


Technical Parameters:

Working Voltage: DC12V/24V +10%

Working Current: DC12V/480mA 24V/240mA

Humidity: 0-95%

Holding Force:280kg(600Lbs) direct pulling force

Working Temperature: -10 to 55℃

Durable Design: Pass 500,000 testing

Weight: 2kg

Lock: 250mmL x 42mmH x 25mmH

Iron Plate: 180mmL x 38mmH x 11mmH

Warranty: 3 years

Applicable: glass door, wooden door, fireproof door

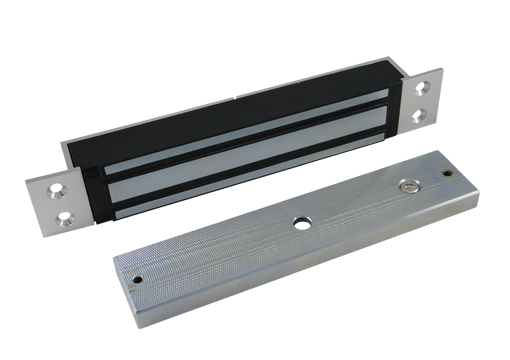

280MS Electromagnetic Lock With Mortise Mount


Technical Parameters:

Working Voltage: DC12V/24V +10%

Working Current: DC12V/480mA 24V/240mA

Humidity: 0-95%

Holding Force:280kg(600Lbs) direct pulling force

Working Temperature: -10 to 55℃

Durable Design: Pass 500,000 testing

Weight: 2kg

Lock: 231.6mmL x 41.6mmH x 24.5mmH

Iron Plate: 180mmL x 38mmH x 11mmH

Warranty: 3 years

Applicable: glass door, wooden door, fireproof door

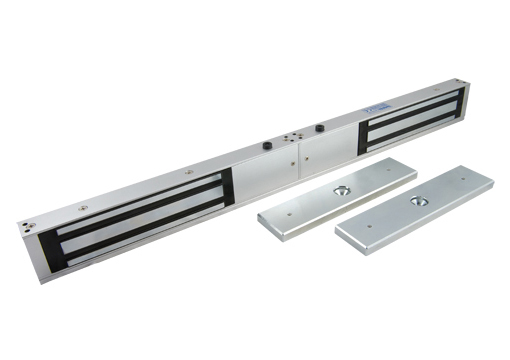

FCL-280KG Double Door Electromagnetic Lock


Technical Parameters:

Working Voltage: DC12V/24V +10%

Working Current: DC12V/480mAx2 24V/240mA

Humidity: 0-95%

Holding Force:280kg(600Lbs) direct pulling force

Working Temperature: -10 to 55℃

Durable Design: Pass 500,000 testing

Weight: 4kg

Lock: 500mmL x 42mmH x 25mmH

Iron Plate: 180mmL x 38mmH x 11mmH

Warranty: 3 years

Applicable: glass door, wooden door, fireproof door

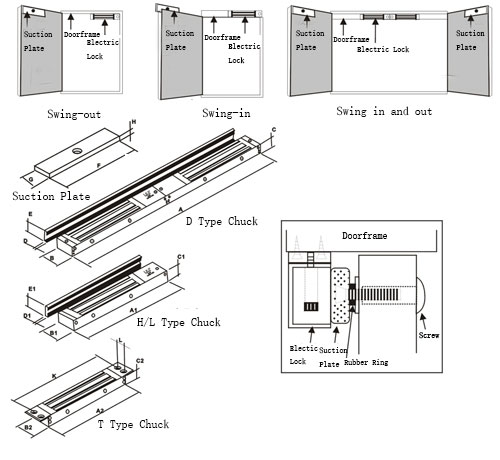

Installation Diagram:

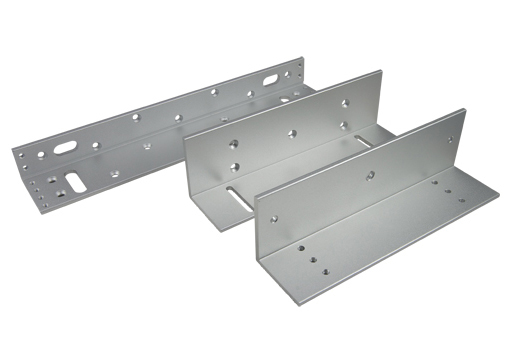

Bracket for the 180Kg/280Kg/350Kg/500Kg Series electromagnetic lock special design for out-swing narrow door frame door project to install the magnet, with 5 adjustable holes to suit different door frame.


280 L Bracket

Technical Parameters:

U ElectroMagnetic Bracket

Suitable For: 280 series ElectroMagnetic Lock

Weight:0.32Kg

Size: 250*50*30mm


280 ZL Bracket


Technical Parameters:

U ElectroMagnetic Bracket

Weight:0.32Kg

Suitable For: 280 series ElectroMagnetic Lock

Size: 168*50*30mm


280UL Bracket


Technical Parameters:

U ElectroMagnetic Bracket

Weight:0.42Kg

Size: 180*43*28mm

Suitable For: 280 series ElectroMagnetic Lock
