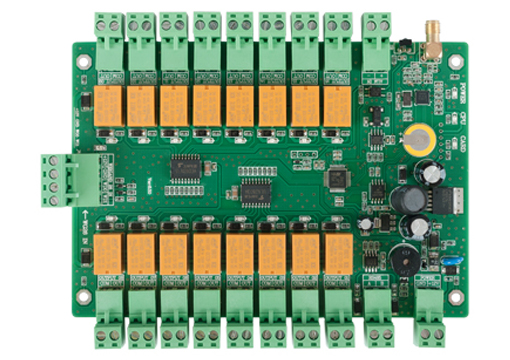

FC-2866M 16 Floors Offline Lift Access Board
FC-2866 Offline lift access board can control 16 floors, 60,000 black and 130,000 white list event logs, support 12V or 24V operating voltage, 1 fire alarm input, 1 temperature sensor, voltage sensor group 1, group WG26 Access Reader , one set of RS485 communication, support for infrared remote control programming. Voltage and current DC12V <1500mA. Size: 160 × 130 × 20mm

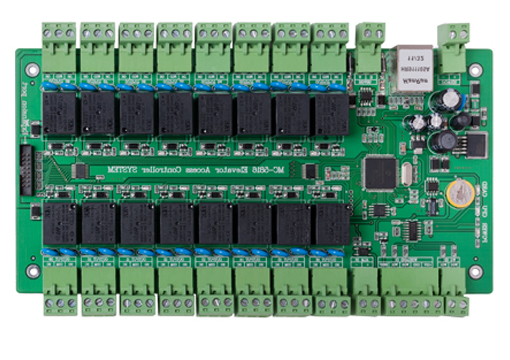

MC-5816A 16 Floors Lift Access Control Board
MC-5816 Series of smart card elevator / locker access controller, also known as smart card elevator access control system. MC-5816 Is used to lift hierarchical control, personnel up and down the elevator access control systems products.

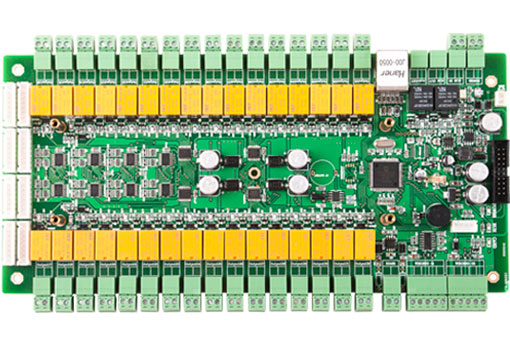

FC-8832A 32 Floors Elevator Access Control Board
FC-8832 Lift Access Control Board also known as smart card cabinet lock management system. FC-8832 is used to lift hierarchical control, personnel up and down the elevator access control systems products.

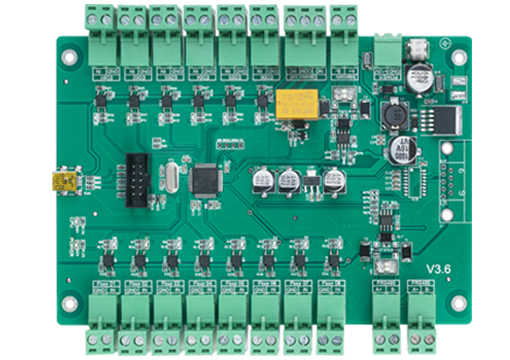

FC-2864M 32 Floors Offline Lift Access Control Board
FC-2864M lift access controller is mainly used in elevator system, cabinet system, mailbox system, military firearms system etc, support two modes to control:1. connect by RS485. 2.Offline manage (don't need wire). The max distance of RS485 wire is 1200m , a bus can connect 255 sets, or you can choose integrate control, intall them in the same system which like other access control device.

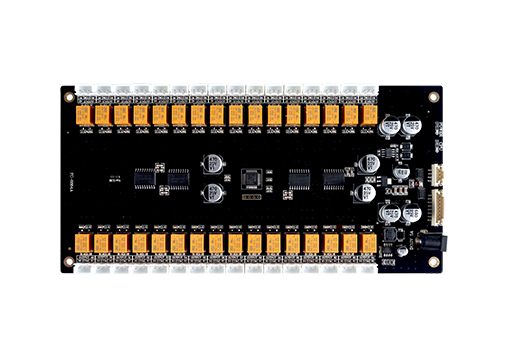

FC-ED86 Elevator Linkage Board
FC-ED86 Elevator Linkage Board support the lift main boards FC-8832、MC-5816、FC-2816、FC-2866 and etc, linkage with intercom system, FC-ED86 max support 6 lifts's intercom linkages at same time, support protocol mode and information collection mode.
