Hello, I am a landlord, I bought a MC-203E electric door lock from your company, now it can be used normally, but I live on the 3rd floor and always go to the first floor to open the door when I have friends, I would like to ask if it is possible to open the door to the third floor, so that a friend will come over and the door will be opened by pressing the switch, if possible, how do I need to wire it? Thank you

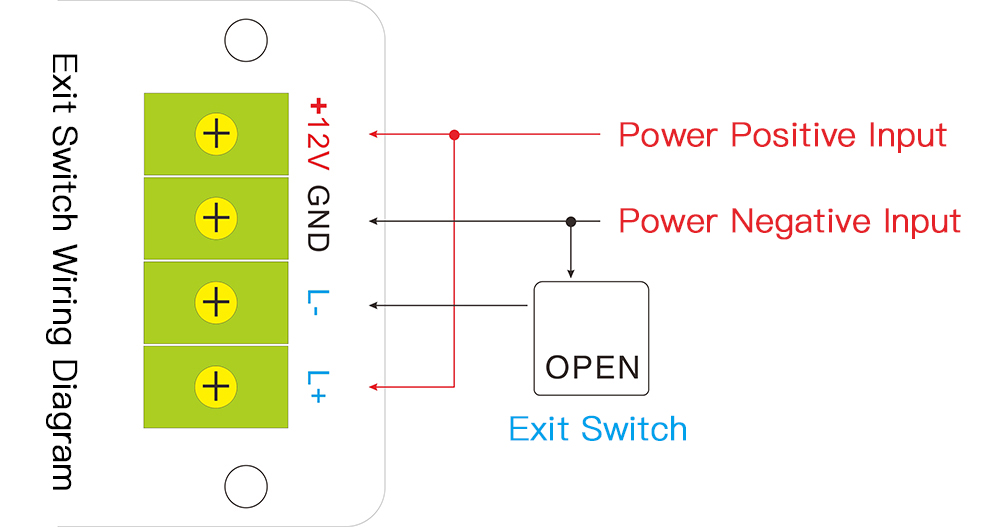

Hello! Thanks for using our company's products! MC-203E electric door lock can be connected to the door switch. The switch is independent of the positive and negative poles, one end of the switch is connected to GND, and the other end is connected to L-, in addition, a wire must be connected from L+ to +12V. The wiring diagram is as follows:
