MC-5812R to TCP/IP for communication

2016-11-09 15:17

Details of the problem:

Hello, I want to know how the communication of RS485 access control board is converted to TCP communication and how to network. Can you refer to us through the wiring diagram or the system diagram. We are using your MC-5800 series access controller

Expert answer:

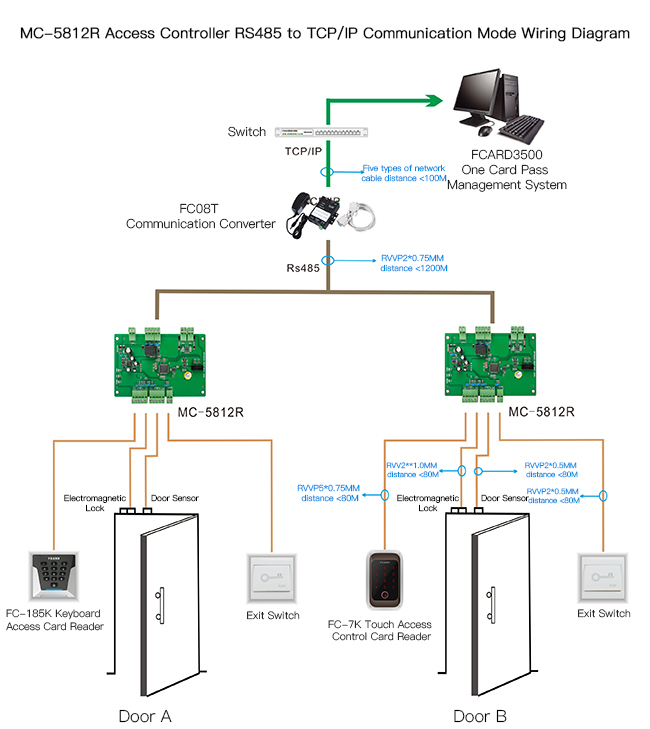

Hello, please refer to the following picture:


Can solve( 0 ) Can not be solved( 0 )
