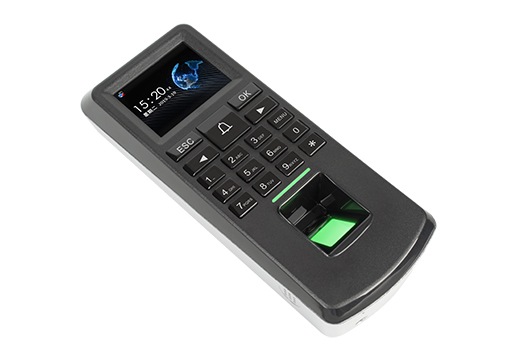

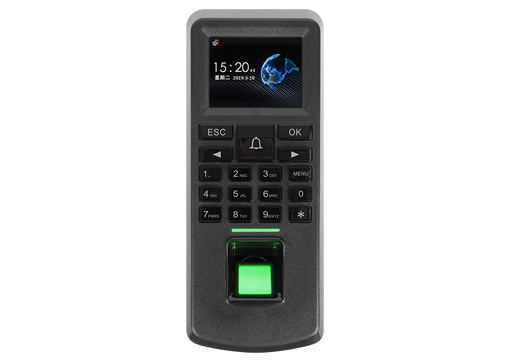

FC-C102E/M Time Attendance Access Controller
FC-C102 is a time attendance access controller, which supports networked access control attendance and independent work. It adopts multi-core ARM processor, integrates massive memory, built-in live fingerprint recognition circuit, supports high-speed recognition and rejection of fake fingerprints. Fingerprint recognition time <1S, adopts 2.4-inch TFT color screen, supports 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records, (optionally supports ID card or Mifare card), TCP/IP networking, RS485 networking, supports 1 group of door opening Relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data, support cloud platform. Simplified Chinese and English (other languages can be customized).


Product Introduction


FC-C102 Time Attendance Access Controller


FC-C102 is a time attendance access controller, which supports networked access control attendance and independent work. It adopts multi-core ARM processor, integrates massive memory, built-in live fingerprint recognition circuit, supports high-speed recognition and rejection of fake fingerprints. Fingerprint recognition time <1S, adopts 2.4-inch TFT color screen, supports 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records, (optionally supports ID card or Mifare card), TCP/IP networking, RS485 networking, supports 1 group of door opening Relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data, support cloud platform. Simplified Chinese, English (other languages can be customized)

Product Parameters

Model: FC-C102

Working Temperature: 0-70℃

Worko Humidity: 20-80%

False Recognition Rate: < 0.0001%

Rejection Rate: < 0.01%

Working Voltage: DC12V(9-14V)

Display: 2.4 inches TFT color screen

Verification Mode: 1:N, 1:1

Registration Way: Fingerprint, password, (optional ID card or Mifare card)

Working Mode: Time attendance access controller

Fingerprint Acquisition Area: 16 x 14 mm

The Acquisition Angle Range: ± 45°

Recognition Time: <1s

Capacity: 5,000 fingerprints, 5,000 cards, 5,000 passwords, 200,000 records

Communication Port: TCP/IP, RS485, USB

Controller Port: Wiegand26

Size: 78.5 X 197 X 33 mm



FC-C102 Time Attendance Access Controller



Product advantages:

1. Liveness Fingerprints

2. High Speed Algorithms

3. Maximum 300 million fingerprint capacity

4. Support TCP/IP/WIFI Communication

5. 2.4 inches screen


Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
