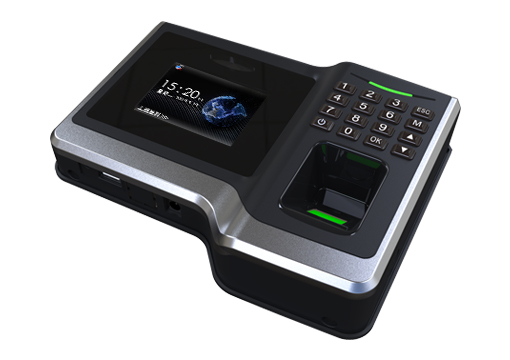

FC-A105E/M Fingerprint Time Attendance Access Controller
FC-A105 is a fingerprint time attendance access controller that supports networked access control and attendance. It adopts multi-core ARM processor, integrates massive memory, built-in live fingerprint recognition circuit, supports high-speed recognition and rejection of fake fingerprints. Fingerprint recognition time <1S, adopts 2.8-inch TFT color screen, support 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records, support ID card (optional support Mifare card), TCP/IP networking, RS485 networking, support 1 group of door opening relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data, support cloud platform. Simplified Chinese, English (other languages can be customized)


Product Introduction



FC-A105E/M Fingerprint Time Attendance Access Controller


FC-A105 is a fingerprint time attendance access controller that supports networked access control and attendance. It adopts multi-core ARM processor, integrates massive memory, built-in live fingerprint recognition circuit, supports high-speed recognition and rejection of fake fingerprints. Fingerprint recognition time <1S, adopts 2.8-inch TFT color screen, support 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records, support ID card (optional support Mifare card), TCP/IP networking, RS485 networking, support 1 group of door opening relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data, support cloud platform. Simplified Chinese, English (other languages can be customized)

Product Parameters

Model: FC-A105E/M

False Recognition Rate: < 0.0001%

Rejection Rate: < 0.01%

Working Voltage: DC12V (9-14V)

Screen: 2.8 inch TFT color screen

Verification Mode: 1:N, 1:1

Registration Way: Fingerprint, Password, ID card  (Mifare card optional)

Working Mode: Time attendance access controller

Working Temperature: 0-70 ℃

Working Humidity: 20-80%

Fingerprint Acquisition Area: 16 x 14 mm

The Acquisition Angle Range: ± 45°

Confirm Response Time: < 1s

Capacity: 5,000 fingerprints, 5,000 cards, 5,000 passwords, 200,000 records  (30,000 fingerprint versions can be customized)

Communication Port: TCP/IP, RS485, USB (WIFI can be customized)

Controller Port Protocol: Wiegand26, Bell

Size: 140.7 X 186 X 40.2mm

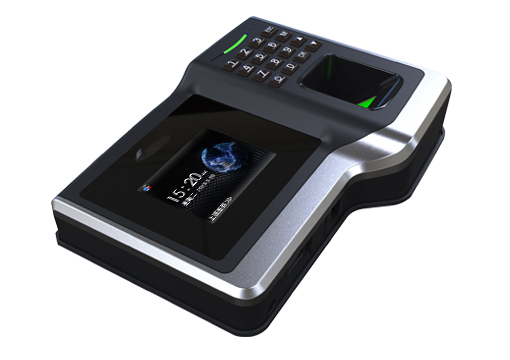

FC-A105 Fingerprint Time Attendance Access Controller




Product Advantages:

1. Living Fingerprints

2. High Speed Algorithms

3. Maximum 300 million fingerprint capacity

4. Support TCP/IP or WIFI communication

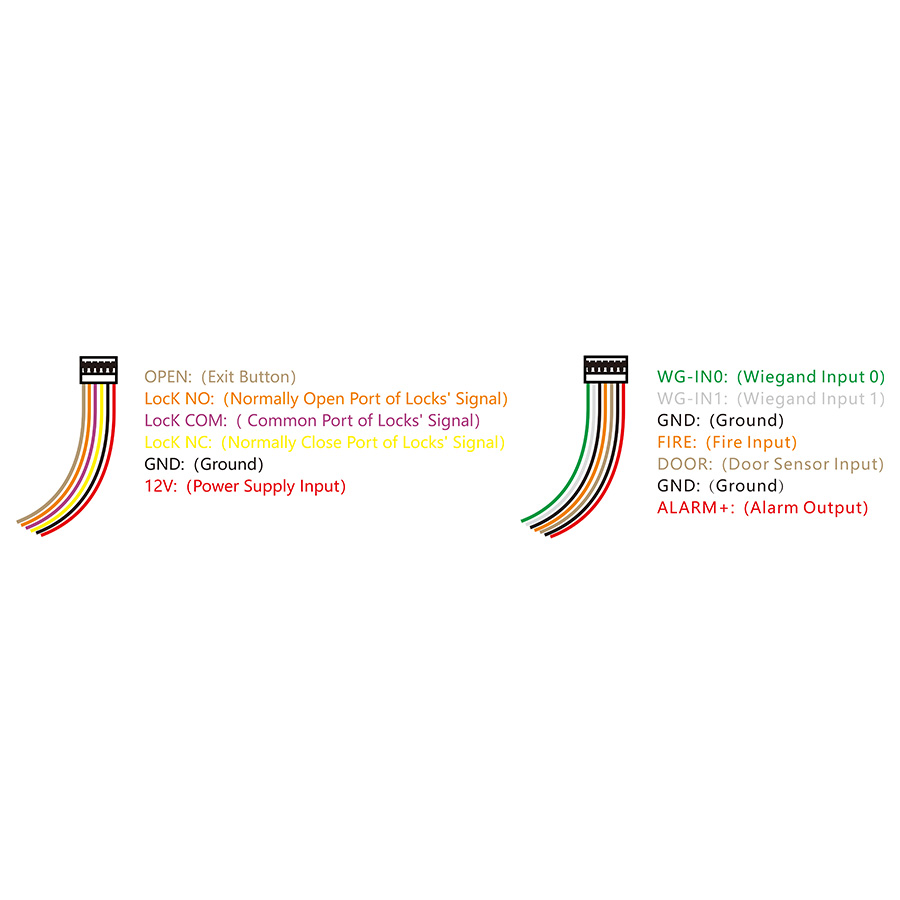

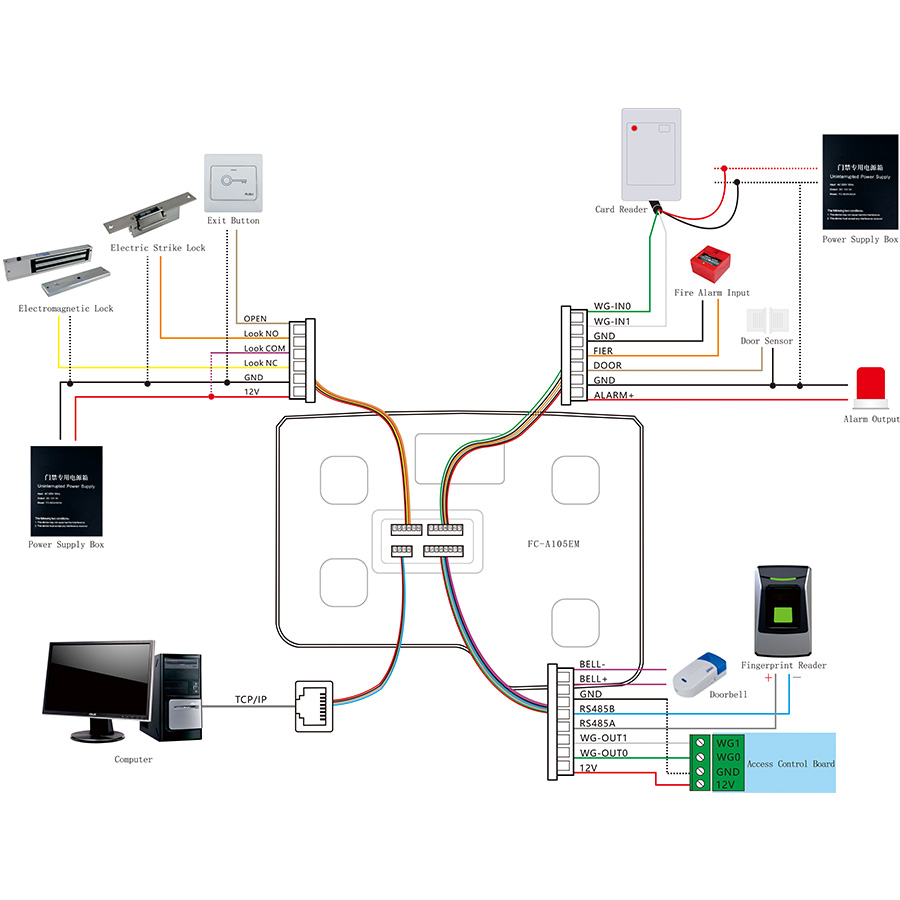

Wiring Diagram:

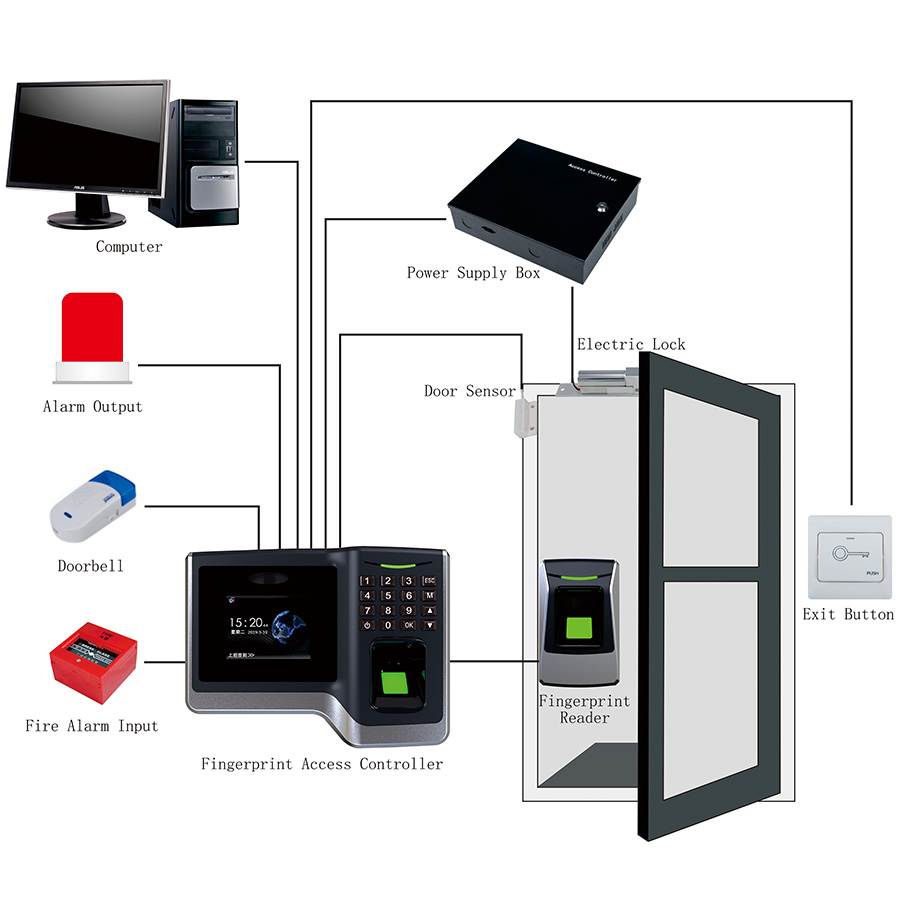

System Structure:

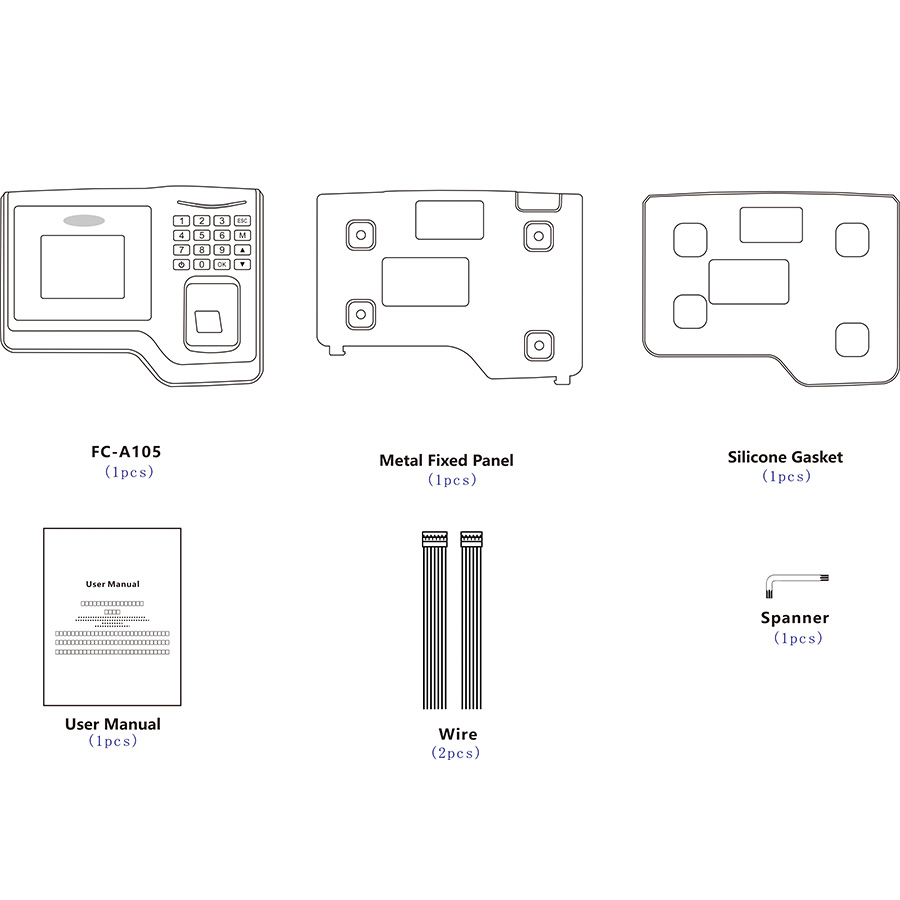

Accessories:


Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
