FC-362E/M Metal Keyboard Access Controller
The metal keyboard access controller is powerful and easy to install. It is an ideal access control device used in offices, homes, computer rooms and public places.

FC-362E/M metal keyboard access controller is specially designed for electric lock and security system. It adopts a unique metal shell design, smart keyboard board operation, built-in high-end microprocessor, and its anti-interference ability, safety and security, the reliability is extremely high, and it can self-diagnose and self-protect to ensure that the system works safely and effectively.


Product Introduction

Metal Keyboard Access Controller

FC-362E/M Metal Keyboard Access Controller


FC-362E/M metal keyboard access controller is specially designed for electric lock and security system. It adopts a unique metal shell design, smart keyboard board operation, built-in high-end microprocessor, and its anti-interference ability, safety and security The reliability is extremely high, and it can self-diagnose and self-protect to ensure that the system works safely and effectively.

The access controller can support different proximity cards according to the model (FC-362E supports EM card, EM compatible card, EM format encryption card, FC-362M supports MF1 format Mifare card) to open the door, it has proximity card to open the door, password to open the door, induction There are three door opening methods such as card + password opening, and the user can choose the appropriate opening method according to their needs. The access control parameters can be set directly on the keyboard without a computer, making the operation easier.

FC-362E/M metal keyboard access controller has a keyboard self-locking function. The user can set the number of keyboard errors and preset the keyboard self-locking time, which can effectively prevent others from detecting the password to open the door. Anti-disassembly alarm function, that is, in working state When the device is disassembled, the access control will trigger an alarm and output a prompt sound. The illegal door opening alarm function, the device detects an abnormal door opening through the door sensor switch signal, the access control will trigger an alarm and output a prompt sound. After the door sensor is installed, this function will be automatically activated.

The access controller can store up to 10,000 sets of door opening data information (including proximity card opening data, password opening data, proximity card + password opening data), and all stored information will not be lost due to power failure. It also supports doorbell output and can be matched wired doorbell use.

The metal access controller is powerful and easy to install. It is an ideal access control device used in offices, homes, computer rooms and public places.

Product Parameters

Working Voltage: DC9-13.8V

Working Current: < 150mA

Working Temperature: -10℃- +75℃

Reading Speed: <0.2s

User Capacity: 1000 (can be extended to 10,000)

Exit Switch: Support

Door Sensor Alarm: Support

Admin Card Management: Support

Support Card: ID card or Mifare card

Wireless Remote Control: Support

Alarm Output: Support

Offline Use: Support

Issuing Device: Keyboard, Admin card

Size: 86.1×86.1×21.5mm

Product Size:

Product Size

Metal Keyboard Access Controller Size

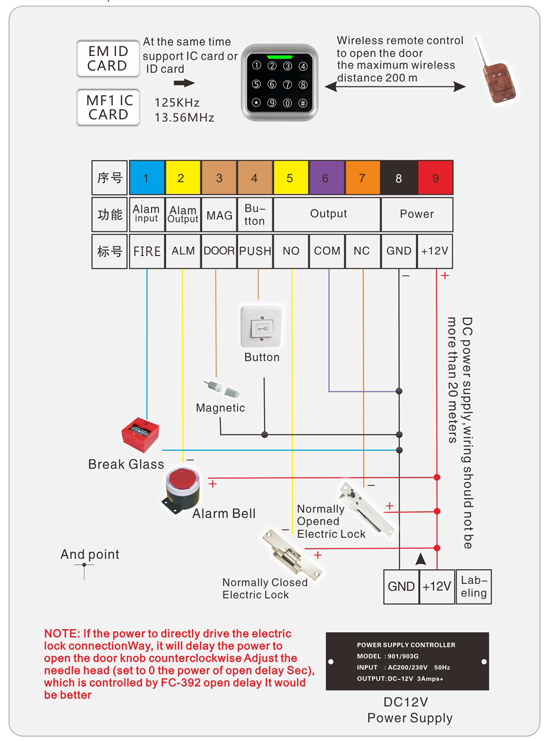

Wiring Diagram:

Metal Keyboard Access Controller Wiring Diagram


Wiring Ports

+12V: Power supply anode,input Range: DC9-13.8V

GND: Power supply cathode, it's also the common point of the signal

NC: Normally close point of the relays, current load is DC3A / 30V

COM: Common point of the relays, current load is DC3A / 30V

NO: Normally open point of the relays, current load is DC3A / 30V

PUSH: Exit Button Switch, low level unlock

DOOR: Door status switch, connected with magnet, low level means door shut

ALM: Alarm output port, low level there is alarm, current load is 100ma.

WGO: Wiegand 26 output data line (data 0 )

FIRE: Connect the alarm signal (Connect GND trigger)

BELL: Connected with doorbell

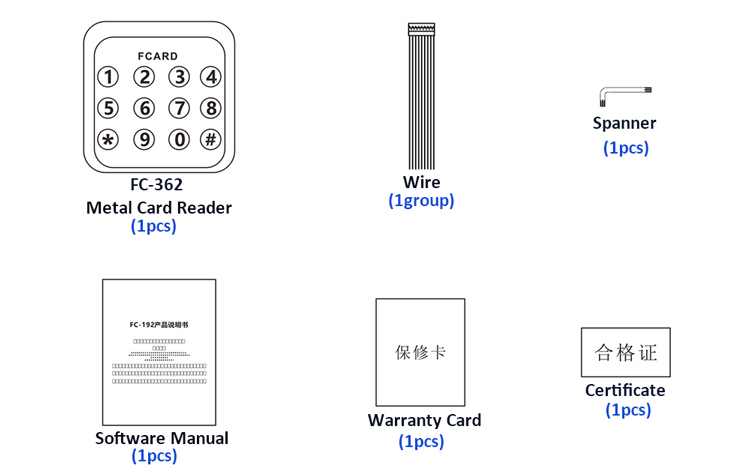

Parts List:

Metal Keyboard Access Controller Parts List
