MCT-05A/B Access Control Power Supply
MCT-05A/B Access Control Power Supply adopts ultra large connection terminal, convenience wiring; full stabilivolt DC12V output (Within 11V-14V); A is not for power supply battery; B support power supply battery.

MCT-05A/B Access Control Power Supply With charge and discharge circuit, over discharge protection function, high-power pure copper good quality transformer and super large terminal, it can also be equipped with 12V 7AH battery (MCT-05B has built-in battery). After power failure, it can continue to supply power.

Product Introduction

Access Control Power Supply

MCT-05A Access Control Power Supply


MCT-05A Access control power supply specially used with access control board, build in Installation column which is suitable for FC-8900 series access control board, with charge and discharge circuit, over discharge protection function, high-power pure copper good quality transformer and super large terminal, Access control power box can also be equipped with 12V 7AH battery (built-in battery). After power failure, it can continue to supply power.

The power supply is used with high grade electronic components and the advanced international technological process of manufacturing technology. The quality is absolutely reliable.

Product Parameters

AC input: AC220V 50HZ

Output Voltage: DC12V

Instantaneous Current: 5A

Continuous Current: 3.0A

Working Temperature: -20 C to +60 C

Working humidity: ≤90%RH

Battery: built-in

Size: 23*27*6.7cm

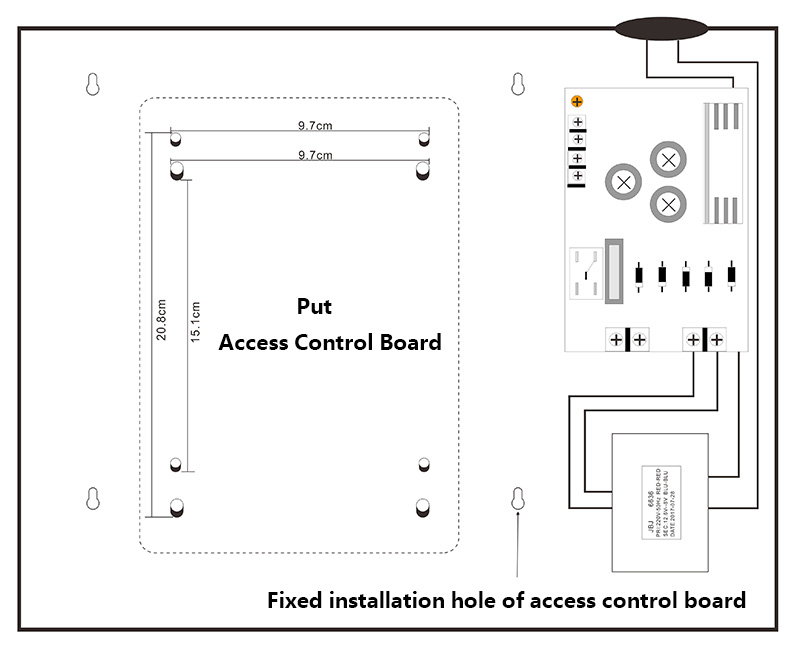

The internal structure of the power supply box:

The internal structure of the power supply box

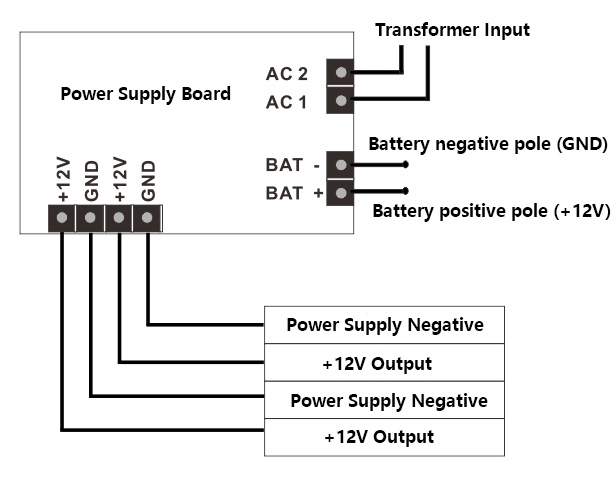

Wiring Instruction:

Wiring Instruction

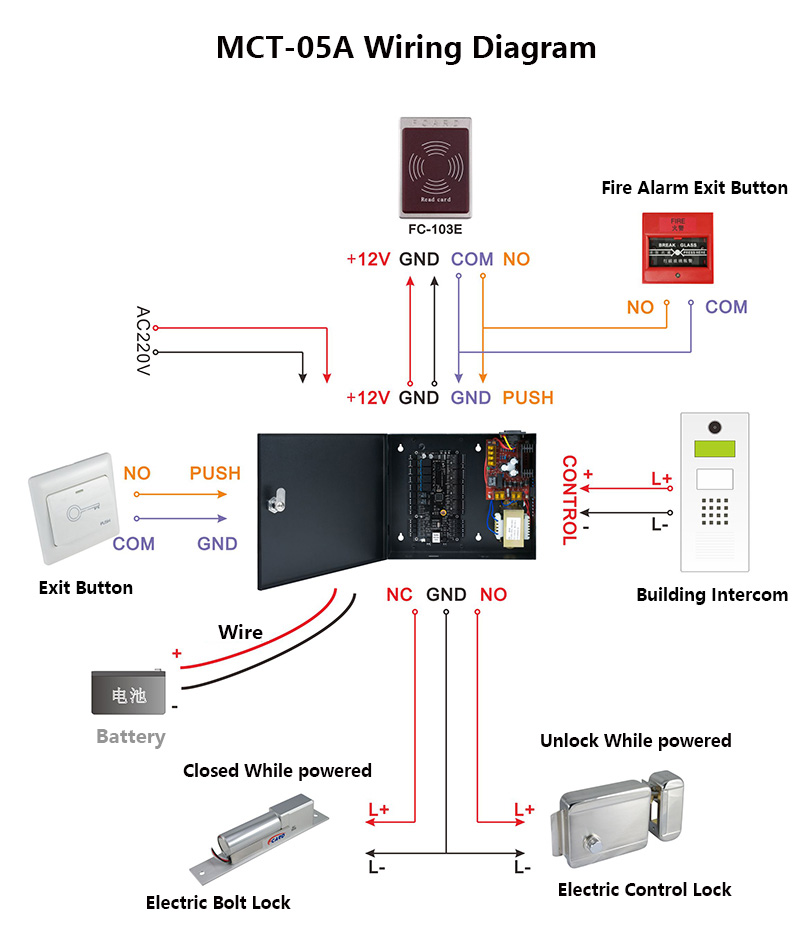

Wiring Structure Diagram:

Wiring Structure Diagram
