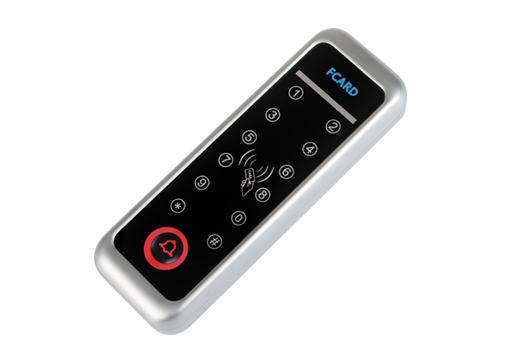

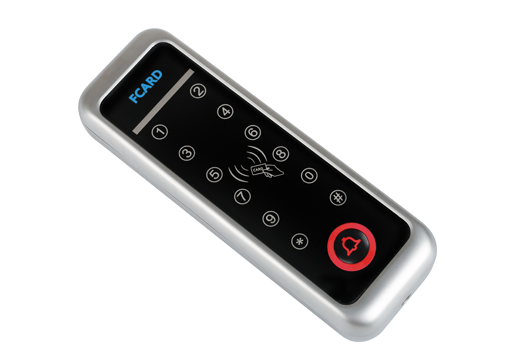

FC-191 Metal RFID Card Reader
FC-191 Metal RFID Card Reader uses advanced RF receive circuit design and embedded microcontroller, combined with efficient decoding algorithm to complete the 64bits Read-Only EM4100 compatible ID card.

FC-191 Metal RFID Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.

Product Introduction


FC-191 Metal RFID Card Reader uses advanced RF receive circuit design and embedded microcontroller, combined with efficient decoding algorithm to complete the 64bits Read-Only EM4100 compatible ID card.

FC-191 Metal RFID Card Reader IC type is use 13.56MHz frequency, combined with the encryption algorithm to support reading the MIFARE format IC card’s data of zero sector, obtained the card number through calculate the decoding.

FC-191 metal card reader misreading rate is less than 0.01%. Support keyboard、WIEGAND output keyboard command,this products receive high sensitivity、small working current、low price、high performance etc.

FC-191 Metal RFID Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.


Product Parameters

Working Mode: WG 26/34

Reading Speed: <0.2s

Reading Interval: <0.5s

Reading Distance: 0-60mm (ID card)  0-50mm (IC card)

Reading Type: Mifare card

Reading Frequency: 13.56Mhz

Working Temperature: -25℃ to -75℃

Working Humidity: 10-90%


Voltage: DC10.8-13.8V Standard DC 12V

Build in LED: Three groups

Build in speaker: Buzzer

Working current: 120-180Ma

Networking: WG 16/34 bits standard format data output

Communication Distance: 100m

Transfer Way: Real time

Shell material: zinc alloy + acrylic panel

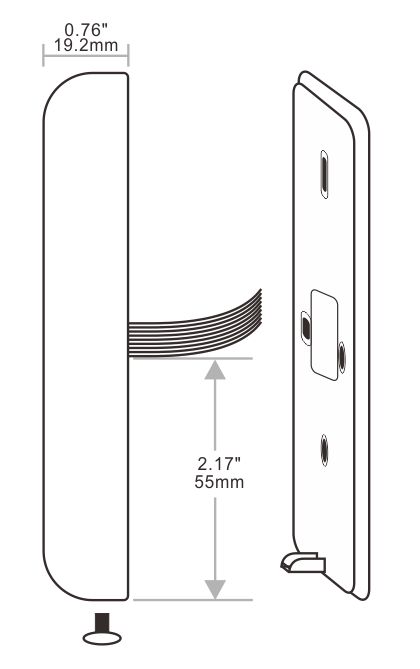

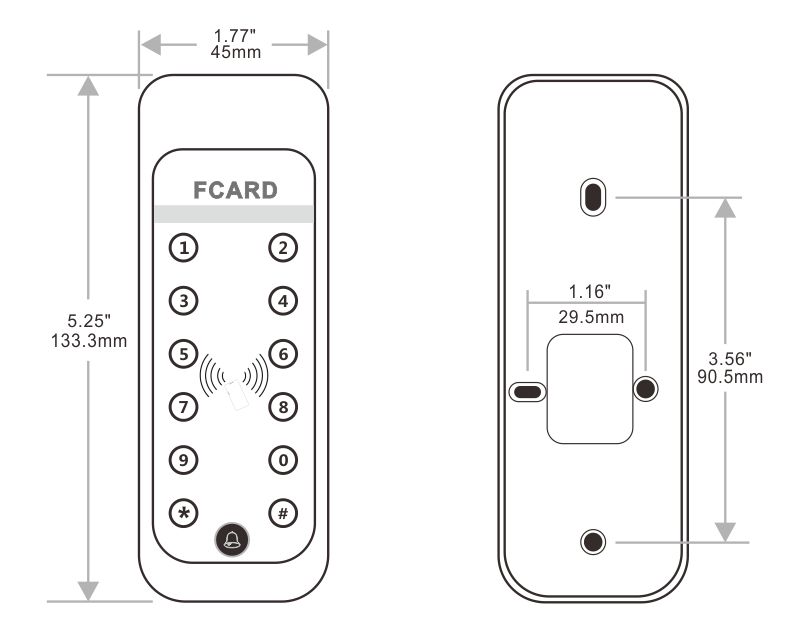

Product Size:

Metal RFID Card Reader Product Size

Metal RFID Card Reader


Instruction:

Metal RFID Card Reader When the card close the card reader, the reader red light will change into green light, flash 1s then into red light, buzzer sounds once time means sending data, same ID card, if reading interval shorter than 500ms between two times reading, the second times reading is invalid. After reading, if the card still in the RF area it will not do any response. Different card separately into RF area, it will continuously to read card and output data.

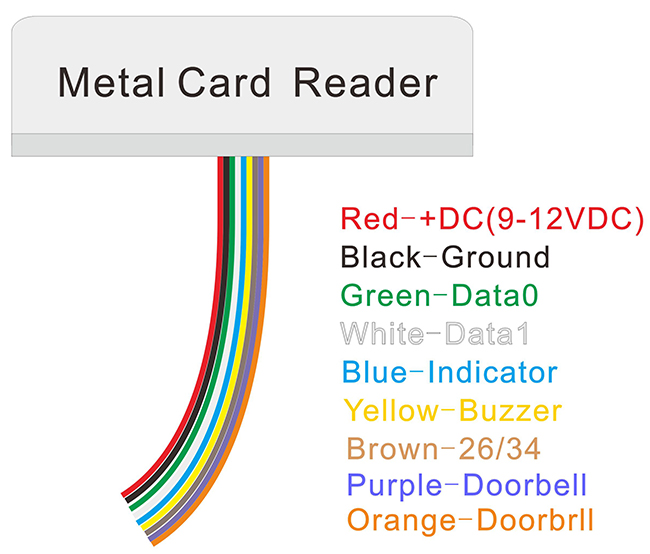

Metal RFID Card Reader Wiring:

FC-191 card reader support WG26/34 format output, Supply LED control and BEEP control line.

+12V: DC10.8-13.8V Standard DC12V

GND: Ground

DO: Data O

D1: Data 1

BUZ: Buzzer

FOR: WG26/34

Metal RFID Card Reader wiring

Compatible with FCARD one card management system. Support: Access Control System, Offline Access Control System, Access Control & Time Attendance, Guard Tour,Canteen POS System, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card management system with one card and one database.
