FC-398 Access Controller Special Used For Residential Community
FC-398 independent access controller is specially designed for office electric door locks and security protection systems. It adopts the latest access control technology, independent control, storage, and identification units, and can perform radio frequency card identification, information storage, anti-theft alarm and other functions.

FC-398 access controller is powerful and easy to install. It is the ideal access control device of choice for offices, homes, computer rooms and public places.

Product Introduction

Access Controller

FC-398 independent access controller (Mifare card access control) is specially designed for office electric door locks and security protection systems. It adopts new access control technology, independent control, storage, and identification unit, and can identify and store information by radio frequency card. Anti-theft alarm and other functions. Support four door opening methods including proximity card (EM card, EM compatible card, Mifarel Mifare card, HID card) door opening, password card door, proximity card + password door opening, and wireless remote control remote door opening method. Users can choose their own suitable door opening method according to their needs. The access control programming setting is carried out directly on the password keyboard, without a computer, and the operation is simple.

The access control keyboard self-locking function, the user can set the number of wrong keyboard input, preset the keyboard self-locking time, which can effectively prevent others from detecting the door opening password. Anti-dismantling alarm function, when the device is dismantled under working condition, the access control will start the alarm output and prompt sound. Supports illegal door opening alarm. The device detects abnormal door opening through the door sensor switch signal, and the access control will activate the alarm output and prompt sound. After the door sensor is installed, this function will be automatically activated. The access control has strong anti-interference ability and self-diagnosis protection function to ensure the safe and effective normal operation of the system.

Access control can store up to 20,000 sets of door opening data information (including sensor opening data, password opening data, proximity card + password opening data, wireless remote control opening data), and all stored information will not be lost due to power failure. At the same time, access control support doorbell output, can be used with wired doorbell.

FC-398 access controller is powerful and easy to install. It is the ideal access control device of choice for offices, homes, computer rooms and public places.

Product Parameters

Reading Parameters: EM125KH or Mifare 13.56MHZ

Reading Speed: 0.15S

Working Voltage: DC9-13.8V (Standard DC12V)

Working Temperature: ﹣0℃ to + 65℃

Humidity: 10%-90%

User Capacity: 20,000/person

Drive Output: 3A relay dry node output COM, NO, NC

Size: 135*115*28MM

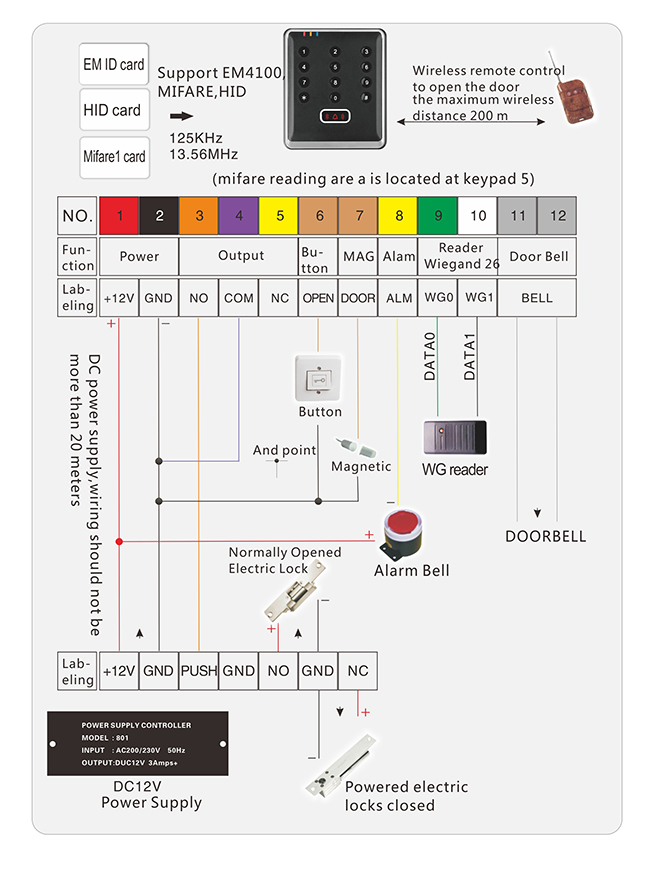

Wiring Diagram:

Access Controller Wiring Diagram

Wiring Port:

1. + 12V: Working power supply anode, input range: DC9-13.8V

2. GND: Working power supply cathode, signal common ground

3. NO: Relay normal open point, current load capacity DC10A / 30V

4. COM: Relay common point, current load capacity DC10A / 30V

5. NC: Relay normal close point, current load capacity DC10A / 30V

6. OPEN: Exit Button, low level unlock

7. DOOR: Door status switch, connected to magnet, low level represents door shut

8. ALM: Alarm output port, low level there is alarm, current load 100ma.

9. WGO: Wiegand 26 output data line (data 0 )

10.WG1: Wiegand 26 output data line (data 1 )

11. BELL: Connected to doorbell

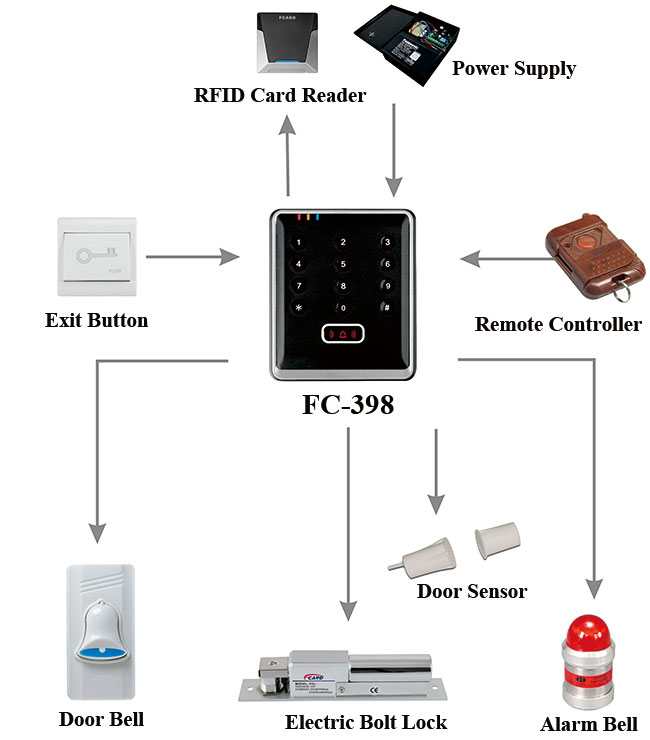

Structure Diagram:

Access Controller Structure Diagram



Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
