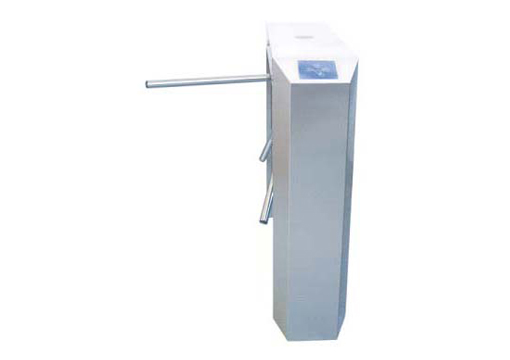

Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques.
Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
Size: 1200×280×990MM
Material: 304 Stainless Steel / Plastic Spraying
Surface Treatment: Plastic Spraying
Passage Width: < 600mm
Direction: Single / bi-directional
Temperature: -15℃—75℃
Humidity: >90%
Communication Distance: <1200
Power: AC220V±10V,50Hz
Weight:65KG
Passage Speed: 30/Min
Reading Method: IC/ID/Magcard
Features:
1. If error self-reported, which is convenient for users to use and maintain.
2. Has indication of traffic and access.(ultra-high brightness on outside)
3. Button opened normally (press the button that the device is always in the open state)
4. Swing door opened automatically when power cut and closed when power on.
5. Detect the circuit automatically.
6. Alarm while entry illegally.
7. Has three anti pinch to protection.
8. Control import / export (modes are adjustable.)
9. Automatic closing / delay of closing(time can adjust) are adjustable.
10. Control the switch with long-range.
11. Unified standard external electrical interface, can be connected with all kinds of reading device.
12. Has counting function (optional).
