  • Tripod turnstile

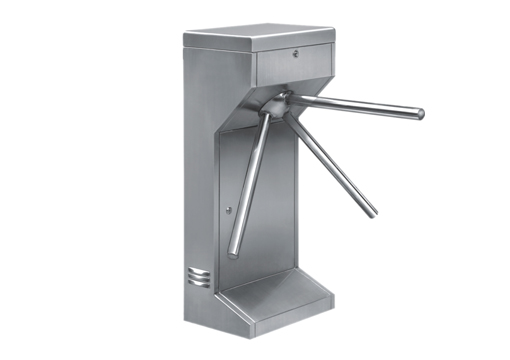

FCT-DS201 Tripod turnstile
The vertical tripod turnstile is an intelligent channel management device developed and produced by our company, it can be equipped with different access control device to intelligently control and manage the passage.

The vertical tripod turnstile FCT-DS201 is a tripod turnstile developed and produced by FCARD, it is formed by stainless steel stamping and has a long service life, it can be used in conjunction with other types of passages, its passing time is 30 people per minute and is suitable for subways, stations, docks and other places.

Product Introduction

Tripod Turnstile

Tripod turnstile are intelligent passage management device researched, developed and produced by our company.The device is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.

The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and Mifare card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.


Product Parameters

Power Supply: AC220V ± 10V, 50Hz

Working Environment Temperature: -15℃—75℃

Humidity: less than 95%, no condensation

Maximum Channel Width: <600mm

Passage Speed: 30 users/ min (tripod turnstile)

Communication Interface: RS485 electrical standard

Communication Distance: <1200

Input Interface: switching signal (COM port is ground)

Working Mode: Single/Bidirection (Adjustable)

Control Mode: semi-automatic/fully automatic/manual

Reading Way: Mifare card/ID card/magnetic card/bar code instrument etc.

Material: 304

Weight: 65kg

Color: stainless steel wire drawing or spraying, optional color

Size: 420x330x980MM

Input Interface: +12V level signal or pulse width >100ms DC12V pulsing signal drive current >10mA

Suitable For: subway stations, terminals, tourist attractions, exhibitions, swimming pools, residential areas, enterprises, institutions, time attendance, access control, consumption management, special channel control

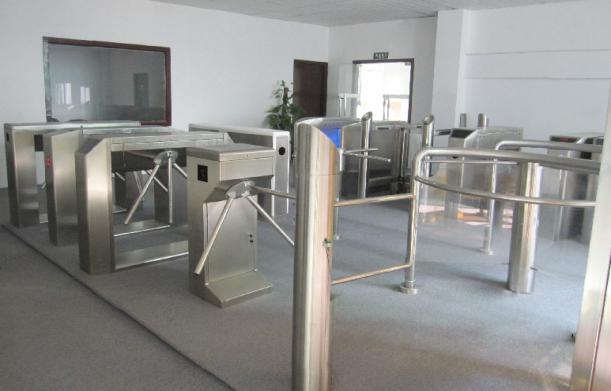

Tripod Turnstile Show


FCT series channel turnstile are channel access management device developed and designed by Fcard Electronics for many years for park attractions, conference and exhibition centers, office buildings, factories, schools, communities, etc. The FCT system channel turnstile have a stainless steel shell with a frame structure. Driven by photoelectric induction and stepping motor, it supports multiple access methods such as free channel two-way passage, locking, computer remote control, and authorized access control. Support proximity card, fingerprint, barcode or timed gate opening to pass.


Products Advantage:

1. The movement design is reasonable and reliable,noise is small,internal hydraulic device is automatically buffered,operation very stable,make the service life more long.

2. Have power off to dropping function, also can add remote controller to control, convenient for managing and dealing with unexpected events.

3. LED light with direction indication.

4. Can be set with "memory" or "without memory" (when set as "memory"), can be used for scenic spot which reading once time can pass many people.

5. With automatic reset function,means if not passed within setting time after get the privilege, it will auto cancel the prilege and restored to the locked state.

6. Waterproof, sunscreen, cold resistant, high temperature resistant.

7. With personalized installation interface, compatible with Mifare, ID card and other smart cards.

8. It has a unified and standard external electrical interface. It can be freely connected with all kinds of read-write devices, so that it is easy to integrate the system.

9. It can be expanded as an automatic identification system, access control, attendance, charging and other functions.

10. Can be used in conjunction with other types of channel products.


System Function:

1. Use unique Geneva Wheel structure to realize the zero position locking and unlocking.

2. Whole system runs smoothly, with little noise and no mechanical shock.

3. It has the function of fault self checking and alarm prompt, which is convenient for user's maintenance and use.

4. It has many working modes are available, can be bidirectional reading to limit, also can one side to reading, the other side fobid passed, one side reading card, another side free passed, and the working mode of turnstile can be set by the control board button, without changing the mechanical structure.

5. Arms auto drop when power off , auto up when power on.

6. Remote control drop/up arms, to meet the users and fire security requirements.

7. It has a unified and standard external electrical interface.Can be connected with all kinds of read-write devices, which is convenient for system integration, and can realize remote control and manage by computer.

8. It can automatically count the people total quantity, and display bu LED.

9. With a clear pass indication function, indicates the user can passed or cannot passed.

10. With reading memory or without memory function,and users can according to their own needs to settings by access control board button.

11. Software setting, can limit the persons' quantity,to meet the special requirements.

12. Auto reset function.If not passed within the setting time, it will auto cancel the prilege and restored to the locked state.

13. With anti drilling, anti climbing alarm function (Optional)


Applications:

Uses: used for pedestrian passage and ticket management, suitable for: airports, subways, libraries, office buildings, theaters, and office buildings. It can be used in conjunction with various card reading, automatic ticket checking, fingerprints and other systems (which can effectively prevent people from entering behind).
