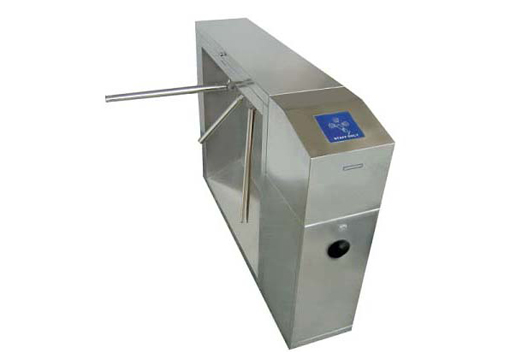

The non-standard tripod turnstile is an intelligent channel management device researched, developed and produced by our company, by configuring different access control device, the intelligent control and management of the passage can be completed.

The entire non-standard tripod turnstile is formed by stamping and forming of stainless steel board, which is beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside, which can easily integrate bar code cards, ID cards, Mifare cards and other reading and writing devices in this device, in order to provide an orderly and civilized way for entering and exiting personnel, and to prevent illegal personnel from entering and exiting, at the same time, in order to meet the requirements of fire escapes, power outages and poles will be cut in emergency situations to organize evacuation. Cooperating with the ticket sales management system developed by our company, it can meet the needs of park automatic ticket checking.

Products Advantage:

1. The movement design is reasonable and reliable,noise is small,internal hydraulic device is automatically buffered,operation very stable,make the service life more long.

2. Have power off to dropping function, also can add remote controller to control, convenient for managing and dealing with unexpected events.

3. LED light with direction indication.

4. Can be set with "memory" or "without memory" (when set as "memory"), can be used for scenic spot which reading once time can pass many people.

5. With automatic reset function,means if not passed within setting time after get the privilege, it will auto cancel the prilege and restored to the locked state.

6. Waterproof, sunscreen, cold resistant, high temperature resistant.

7. With personalized installation interface, compatible with IC, ID card and other smart cards.

8. It has a unified and standard external electrical interface. It can be freely connected with all kinds of read-write devices, so that it is easy to integrate the system.

9. It can be expanded as an automatic identification system, access control, attendance, charging and other functions.

10. Can be used in conjunction with other types of channel products.

System Function:

1. Use unique Geneva Wheel structure to realize the zero position locking and unlocking.

2. Whole system runs smoothly, with little noise and no mechanical shock.

3. It has the function of fault self checking and alarm prompt, which is convenient for user's maintenance and use.

4. It has many working modes are available, can be bidirectional reading to limit, also can one side to reading, the other side fobid passed, one side reading card, another side free passed, and the working mode of turnstile can be set by the control board button, without changing the mechanical structure.

5. Arms auto drop when power off , auto up when power on.

6. Remote control drop/up arms, to meet the users and fire security requirements.

7. It has a unified and standard external electrical interface.Can be connected with all kinds of read-write devices, which is convenient for system integration, and can realize remote control and manage by computer.

8. It can automatically count the people total quantity, and display bu LED.

9. With a clear pass indication function, indicates the user can passed or cannot passed.

10. With reading memory or without memory function,and users can according to their own needs to settings by access control board button.

11. Software setting, can limit the persons' quantity,to meet the special requirements.

12. With automatic reset function. After reading the card, if the passer does not pass within the specified time, the system will automatically cancel the passer’s current pass access level, and the restricted pass time can be set by the administrator

13. With anti drilling, anti climbing alarm function(Optional).

Applications:

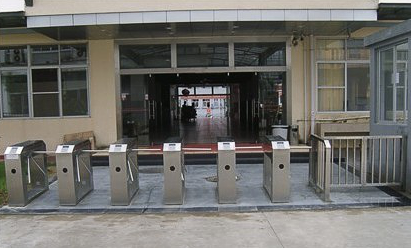

Uses: used for pedestrian passage and ticket management, suitable for: airports, subways, libraries, office buildings, theaters, and office buildings. It can be used in conjunction with various card reading, automatic ticket checking, fingerprints and other systems (which can effectively prevent people from entering behind).
