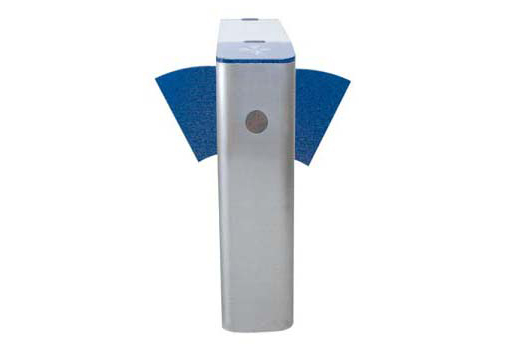

The wing turnstile is an intelligent channel management device researched, developed and produced by our company, by configuring different access control device, the intelligent control and management of the passage can be completed.

The appearance of the entire dual-core wing turnstile product is stamped and formed by stainless steel board, which is beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside, which can easily integrate bar code cards, ID cards, Mifaere cards and other reading and writing devices in this device, so as to provide an orderly and civilized way for people entering and exiting, the wing turnstile can prevent illegal personnel from entering and exiting, and at the same time, in order to meet the requirements of the fire channel, in an emergency, the power will be cut off to organize the evacuation of personnel. Cooperating with the ticket sales management system developed by our company, it can meet the needs of park automatic ticket checking.

Products Advantage:

1. The movement design is reasonable and reliable,noise is small,internal hydraulic device is automatically buffered,operation very stable,make the service life more long.

2. Have power off to dropping function, also can add remote controller to control, convenient for managing and dealing with unexpected events.

3. LED light with direction indication.

4. Can be set with "memory" or "without memory" (when set as "memory"), can be used for scenic spot which reading once time can pass many people.

5. With automatic reset function,means if not passed within setting time after get the privilege, it will auto cancel the prilege and restored to the locked state.

6. Waterproof, sunscreen, cold resistant, high temperature resistant.

7. With personalized installation interface, compatible with IC, ID card and other smart cards.

8. It has a unified and standard external electrical interface. It can be freely connected with all kinds of read-write devices, so that it is easy to integrate the system.

9. It can be expanded as an automatic identification system, access control, attendance, charging and other functions.

10. Can be used in conjunction with other types of channel products.

System Functions:

1. Use unique Geneva Wheel structure to realize the zero position locking and unlocking.

2. Whole system runs smoothly, with little noise and no mechanical shock.

3. It has the function of fault self checking and alarm prompt, which is convenient for user's maintenance and use.

4. It has many working modes are available, can be bidirectional reading to limit, also can one side to reading, the other side fobid passed, one side reading card, another side free passed, and the working mode of turnstile can be set by the control board button, without changing the mechanical structure.

5. Arms auto drop when power off , auto up when power on.

6. Remote control drop/up arms, to meet the users and fire security requirements.

7. It has a unified and standard external electrical interface.Can be connected with all kinds of read-write devices, which is convenient for system integration, and can realize remote control and manage by computer.

8. It can automatically count the people total quantity, and display bu LED.

9. With a clear pass indication function, indicates the user can passed or cannot passed.

10. With reading memory or without memory function,and users can according to their own needs to settings by access control board button.

11. Software setting, can limit the persons' quantity,to meet the special requirements.

12. Auto reset function.If not passed within the setting time, it will auto cancel the prilege and restored to the locked state.

13. With anti drilling, anti climbing alarm function(Optional).

14. Auto shutdown / time out(time adjustable) can be adjusted.

Wing Turnstile Installation:

1. Line pre-buried according to the customer's requirements: determine the position of the chassis, choose the best route between the center point of the fixed position of the chassis and the control room, and pre-bury or excavate the cable trench in the dug trench Put in a cable pipe (PVC pipe or steel pipe) of appropriate diameter, and pass through the power cord and control line required by the device (control line includes: manual button wire 3 cores, RS485 communication signal wire 2 cores). If the distance is far, the power line and control line must be separated by pipes (the distance between the two pipes should be above 40cm). A 10-core connecting wire is connected between the two turnstiles. After all the lines are laid out, it is best to fill the concrete after successful debugging.

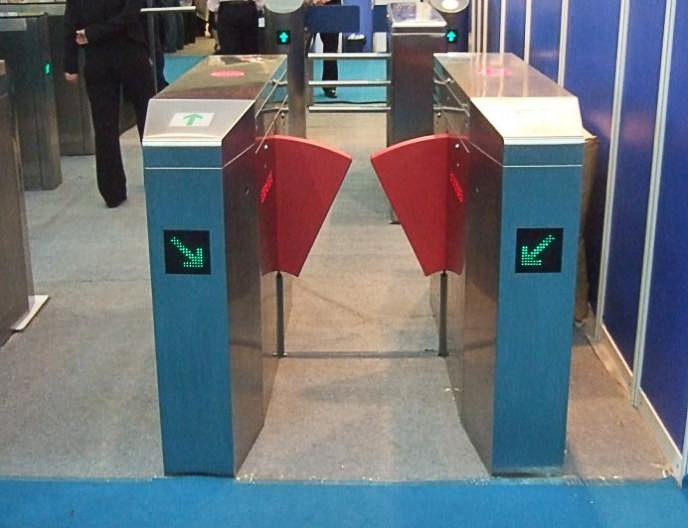

2. Fixed wing turnstile: firstly power on the two wing turnstiles, make the wings run to the closed state, and then align the wings of the two wing turnstiles so that the wings are on the same line, the distance between the wings is 2CM to 4CM, test whether the infrared is aligned, and after all functions are debugged, mark the center of the screw hole of the base and the edge of the chassis base on the ground, then remove the chassis, and use a drill to drill the marked screw holes vertically, the depth must meet the requirements of the expansion screw, move the device to the original position, drive the expansion screw and tighten the screw.

Applications:

Purpose: used for pedestrian passage and ticket management,

Applicable to: airports, subways, libraries, office buildings, theaters, office buildings. Can be used in conjunction with various card reading, automatic ticket checking, fingerprints and other systems (effectively preventing personnel from trailing in)
