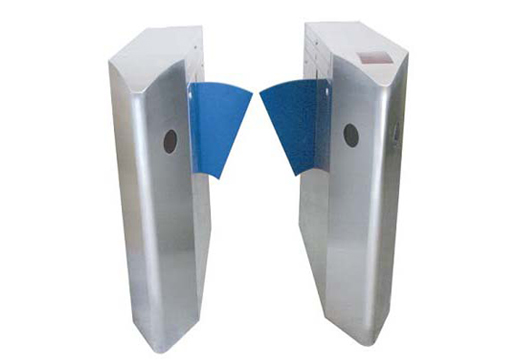

FCT-DY512 Flap Turnstile - Single Core
The bridge wing turnstile is an intelligent channel management device developed, researched and produced by our company, by configuring different access control device, the intelligent control and management of the passage can be completed.

The shape of the bridge wing turnstile is stamped and formed by stainless steel board, which is beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside, which can easily integrate bar code cards, ID cards, Mifare cards and other reading and writing devices on the device.

Product Introduction

Flap Turnstile

The wing turnstile is an intelligent channel management device researched, developed and produced by our company, by configuring different access control device, the intelligent control and management of the passage can be completed.

FCT-DY512 bridge-type ship-shaped wing turnstile, the shape is made of stainless steel board stamping, beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside, which can easily integrate barcode cards, ID cards, Mifare cards and other reading and writing device on this device, it provides an orderly and civilized way for people entering and exiting, it can also prevent illegal personnel from entering and exiting, and at the same time, in order to meet the requirements of the fire passage, power outages and poles will be dropped in emergency situations to organize evacuation. Cooperating with the ticket sales management system developed by our company, it can meet the needs of park automatic ticket checking.

Product Parameters

Power Supply: AC220V ± 10V, 50Hz

Working Environment Temperature: -15℃—75℃

Swing Door Running Time: about 2s

Humidity: less than 95%, no condensation

Drive Motor: DC motor 30W/24V

Maximum Channel Width: <900mm

Passage Speed: 25 users/ min (tripod turnstile)

Communication Interface: RS485 electrical standard

Communication Distance: <1200

Input Interface: switch signal (COM port is ground)

Working Mode: Single/Bidirection ( Adjustable)

Control Mode: semi-automatic / fully automatic / manual

Reading Way: Mifare card/ID card/ magnetic card/ bar code instrument etc.

Material: 304

Weight: 65kg

Color: stainless steel wire drawing or spraying, optional color

Size: 1200x280x990MM

Input Interface: +12V level signal or pulse width >100ms DC12V pulsing signal drive current >10mA

Suitable For: subway stations, terminals, tourist attractions, exhibitions, swimming pools, residential areas, enterprises, institutions, attendance, access control, consumer management, special channel control

Flap Turnstile

FCT series channel turnstile are channel access management device developed and designed by Fcard Electronics for many years for park attractions, conference and exhibition centers, office buildings, factories, schools, communities, etc. The FCT system channel turnstile have a stainless steel shell with a frame structure. Driven by photoelectric induction and stepping motor, it supports multiple access methods such as free channel two-way passage, locking, computer remote control, and authorized access control. Support proximity card, fingerprint, barcode or timed turnstile opening to pass.

Products Advantage:

1. The movement design is reasonable and reliable,noise is small,internal hydraulic device is automatically buffered,operation very stable,make the service life more long.

2. Flap Turnstile has power off to dropping function. Flap Turnstile also can add remote controller to control, convenient for managing and dealing with unexpected events.

3. LED light of the Flap Turnstile with direction indication.

4. Flap Turnstile can be set with "memory" or "without memory" (when set as "memory"). Swing turnstile also can be used for scenic spot which reading once time can pass many people.

5. With automatic reset function,means if the Flap Turnstile does not passed within setting time after get the privilege, it will auto cancel the prilege and restored to the locked state.

6. Waterproof, sunscreen, cold resistant, high temperature resistant.

7. With personalized installation interface, compatible with IC, ID card and other smart cards.

8. Flap Turnstile has a unified and standard external electrical interface. Flap Turnstile can be freely connected with all kinds of read-write devices, so that it is easy to integrate the system.

9. Flap Turnstile can be expanded as an automatic identification system, access control, attendance, charging and other functions.

10. Flap Turnstile can be used in conjunction with other types of channel products.


1. Flap Turnstile use unique Geneva Wheel structure to realize the zero position locking and unlocking

2. Whole system runs smoothly, with little noise and no mechanical shock

3. Flap Turnstile has the function of fault self checking and alarm prompt, which is convenient for user's maintenance and use

4. Flap Turnstile has many working modes are available, can be bidirectional reading to limit Flap Turnstile also can one side to reading, the other side fobid passed, one side reading card, another side free passed, and the working mode of turnstile can be set by the control board button, without changing the mechanical structure.

5. Arms auto drop when power off , auto up when power on.

6. Remote control drop/up arms, to meet the users and fire security requirements

7. Flap Turnstile has a unified and standard external electrical interface. Flap Turnstile can be connected with all kinds of read-write devices, which is convenient for system integration, and can realize remote control and manage by computer.

8. Flap Turnstile can automatically count the people total quantity, and display bu LED

9. With a clear pass indication function, indicates the user can passed or cannot passed.

10. With reading memory or without memory function,and users can according to their own needs to settings by access control board button

11. Software setting, can limit the persons' quantity,to meet the special requirements.

12. Auto reset function.If not passed within the setting time, Flap Turnstile will auto cancel the prilege and restored to the locked state.

13. With anti drilling, anti climbing alarm function(Optional)

14. Auto shutdown / time out(time adjustable) can be adjusted


Flap Turnstile use stainless steel plate,beautiful design,anti rust、durable, using standard electrical interface, easily to integrated the bar code card, ID card, Mifare card to the device.

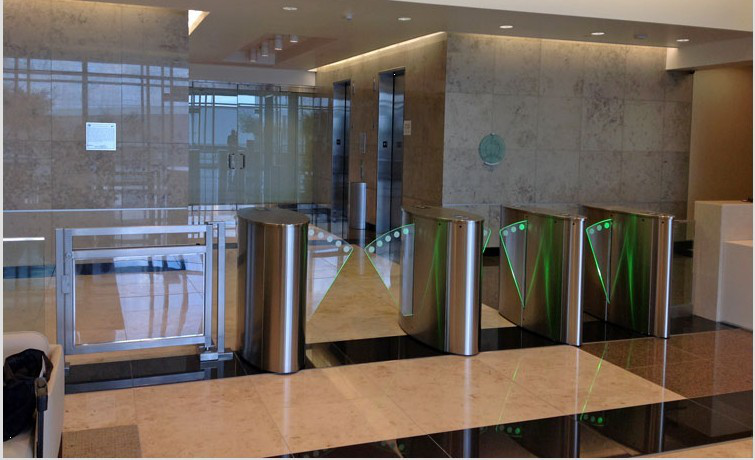

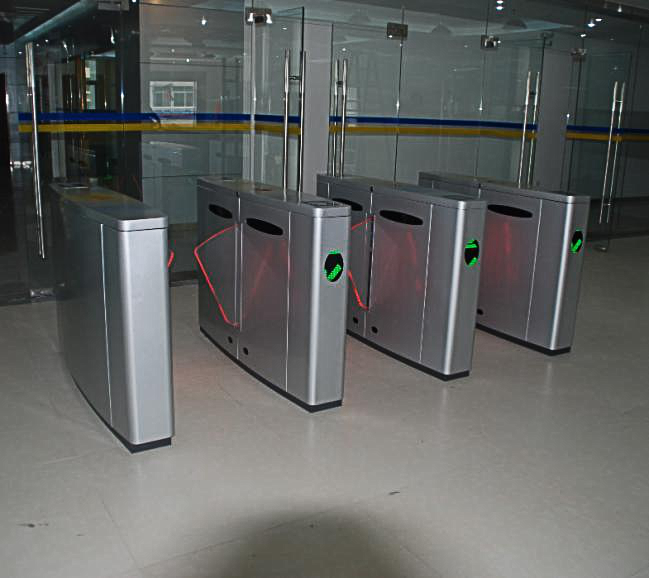

Flap Turnstile Applications

Compatible with FCARD one card management system. Support: Access Control System, Offline Access Control System, Access Control & Time Attendance, Guard Tour,Canteen POS System, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card management system with one card and one database.
