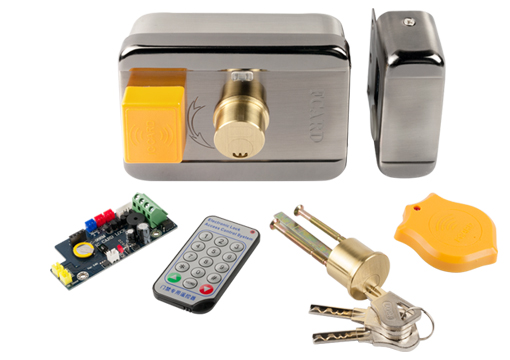

FCL-988M Offline Encrypted Mifare Card Electric Door Lock
FC-988M offline encryption type electric door lock is a new generation of multifunctional anti-theft door lock product, which adopts the latest card reading recognition technology and is developed into a high-tech access control system.


Product Introduction

IC Card Anti-theft Lock

FC-988M offline encryption type electric door lock is a new generation of multifunctional anti-theft door lock product, which adopts new card reading recognition technology, combined with high-tech access control system, and supports Mifare card, second-generation Identification card, residence permit, Encrypted Mifare card, etc., as an electronic key, can realize three management methods: network management, offline management, and infrared remote control management. The built-in large memory supports 80,000 records and 20,000 black and white lists. The product adopts the offline card writing and issuing mode, and the number of personnel registrations is unlimited.

Product Parameters

Working Power Supply: DC12V/900MA

Reading Distance: 0-6CM

Working Temperature: -0 ℃ to 65℃

Working Humidity: 20-95%

Reader Frequency: 13.56MHz

Networking: RS485

User Capacity: 20,000 black and white lists (offline issuance, unlimited number of users)

Record capacity: 80,000 records (50,000 card reading records, 10,000 event records, 10,000 alarm records, and 10,000 system records)

Appearance size: 170*98*55mm

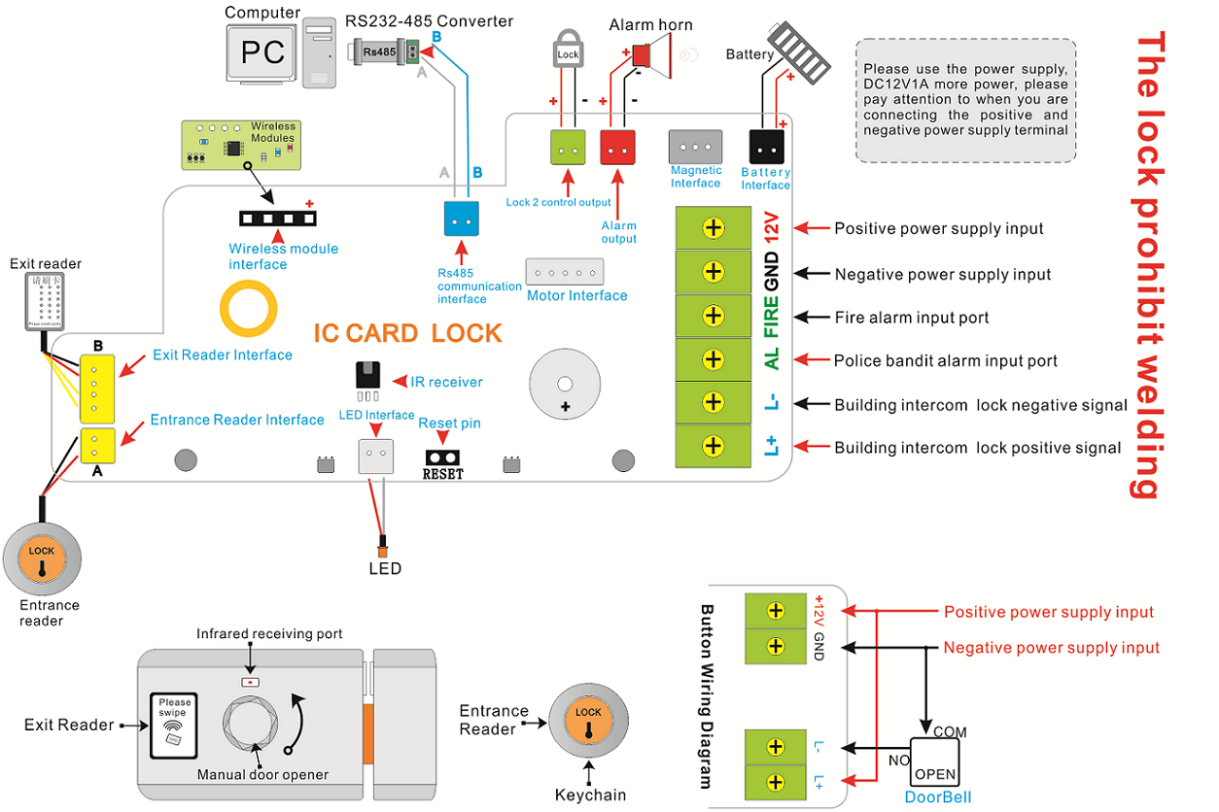

Wiring Diagram:

IC Card Anti-theft Lock Wiring Diagram


Function:

Support 2 sets of card reader antennas (going out and getting started)

Support infrared programmer

Support 1 set of exit switch

Support 1 group of door sensor switch

Support 1 group of doors 2 control output

Support 1 group of alarm output

Support 1 group of RS485 communication ports

Support data initialization jumper

Support a group of building intercom linkage interface

Support 4-button remote control (A button to open the door, B button to arm, C button to disarm/unlock, D button to lock)

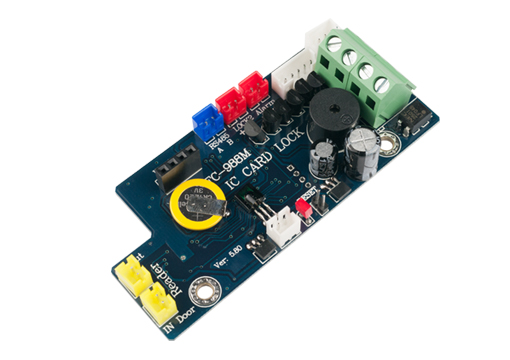

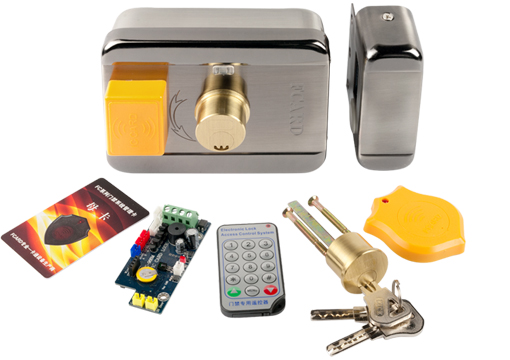

Accessories:

IC Card Anti-theft Lock AccessoriesElectric Lock


Wiring Diagram:

IC Card Anti-theft Lock Communication Wiring Diagram

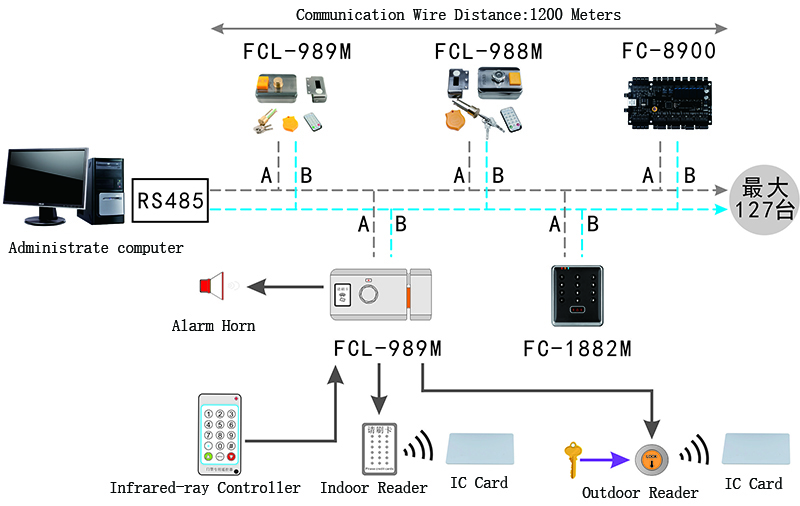

Internet Struture:

IC Card Anti-theft Lock Internet Struture

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
