Connection Diagram of FC-S02 Series Products
2017-05-07 11:51
Details of the problem:

Hello, we purchased FC-S02E access controller, and now the manual is gone, please provide the connection diagram. Thank you!

Expert answer:

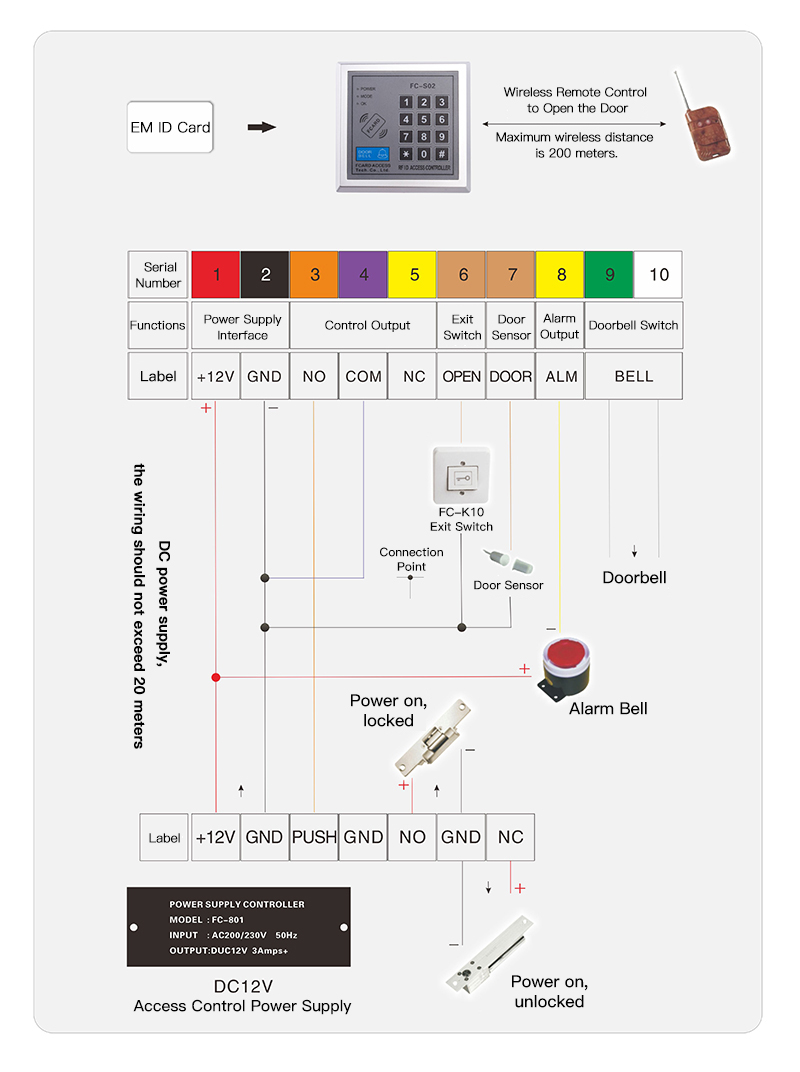

Hello, thank you for purchasing our company's access controller, you can refer to the following picture to connect:

Wiring port performance:

1. +12V: Positive working power supply, input range: DC9-13.8V.

2. GND: The negative pole of the working power supply, which is also the common ground for signals.

3. NO: Normally open point of the relay, current load capacity DC3A/30V.

4. COM: common point of relay, current load capacity is DC3A/30V.

5. NC: normally closed point of the relay, current load capacity DC3A/30V.

6. OPEN: Exit button switch, low level switch.

7. DOOR: Door status switch, connected to the door magnetic switch, low level means the door is closed.

8. ALM: Alarm output port, low level when there is an alarm, current load 100mA.

9. BELL: Connect the doorbell switch.

If you still don’t understand, you can ask us at any time and we will answer you in time.
