FC-198E Standalone Access Controller Wiring Diagram
2016-11-10 09:59
Details of the problem:

Hello, I bought a set of FC-198E access controller from your company’s agent in Hainan, and a special power supply for access control, as well as an electric control lock, because I have only used a switching power supply, but now I use a standard access control power supply , so I don’t know how to connect, please provide a connection diagram, thank you.

Expert answer:

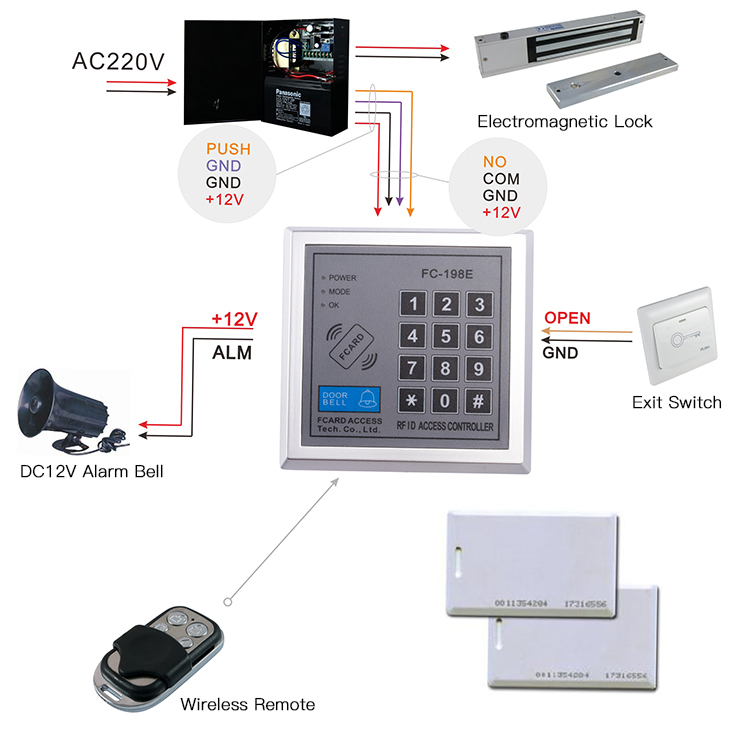

Hello, thank you for purchasing our company's access control products, you can refer to the following pictures to connect:

If you encounter something you don't understand when connecting, please call our technical support number.
