FC-8832A Elevator Access Control Board Wiring Diagram
2016-11-09 17:34
Details of the problem:

Hello, which part of the elevator control FC-8832A elevator access control board? How many card readers can be connected at most, how to connect, please provide the wiring diagram of your elevator access control board, thank you!

Expert answer:

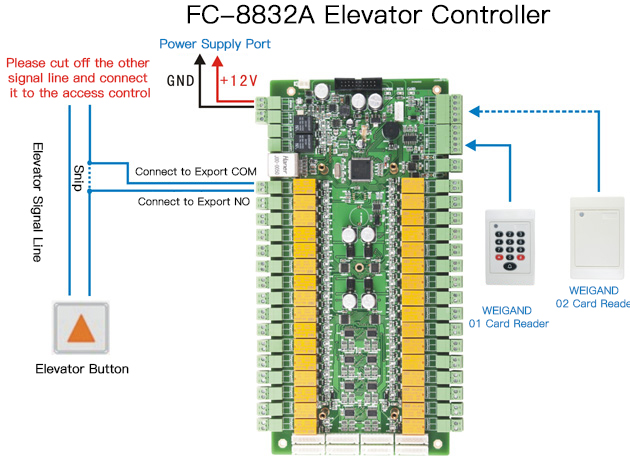

Hello, thank you for purchasing one of our company’s one card pass products, FC-8832A series elevator access control board supports up to two groups of WG26 or 34 card readers. You can refer to the following pictures to connect:

If you encounter something you don’t understand when connecting, please add my QQ, I will give you guidance: QQ: 2880150919
