FC-185K Wiring Diagram
2016-11-10 13:23
Details of the problem:

Hello, i have bought a FC-8820A, a switch power supply and a FC-185K card reader from your company, however, i don’t know how to wiring, i want to setting the wiegand signal into wiegand 34. How should i do? Can you provide me a wiring diagram? Thanks.

Expert answer:

Thank you for your purchased. The wiring diagram shown as below:

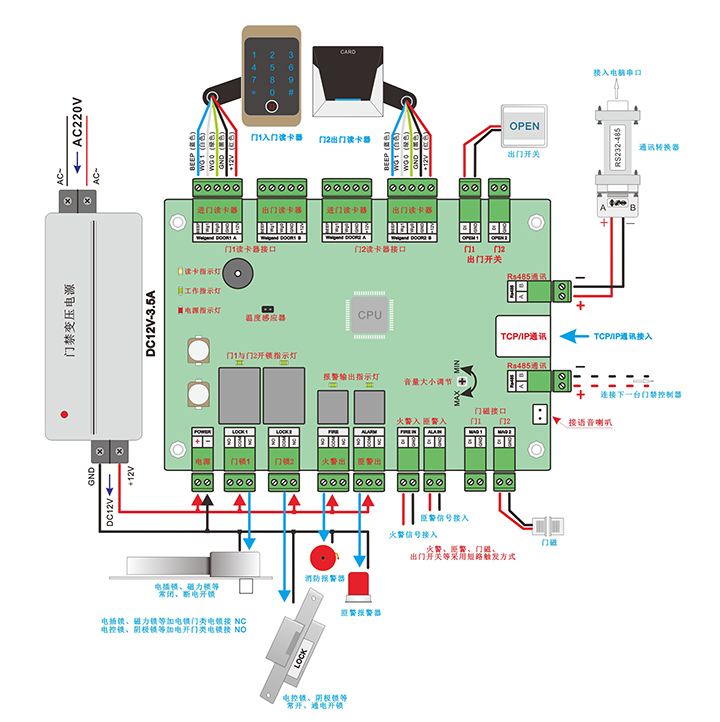

FC-185K Wiring Diagram
