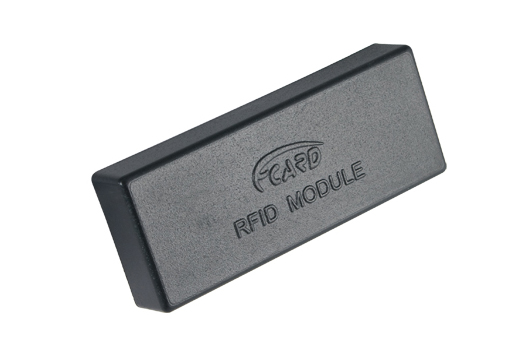

Card Reader module FC-100 adopts advanced frequency accept circuitry and insert micro-controller design, combine high-effective decoding algorithm, accomplish data accept to EM4100 compatible format ID card. Possess working current small, high stability function; it's suitable for access control, attendance, charge, anti-shoplifting, inspection and so on.
Card Reader Module FC-100 Built-in card reader LED and buzzer control pin. The ID card reader can be easily fabricated by externally connecting the 7805, buzzer and LED indicator. It is the internal module of many IC card readers of our company.
Product features:
1. Card Reader module Support external sending and receiving antenna.
2. The furthest distance to 150 mm.
3. The typical decoding time is less than 100 ms.
4. A single power supply, low power wasting.
5. Support wiggins (Wiegand26, 34), RS232 interface and ABA port.
6. Support EM4100 compatible format ID card (64 bits, Manchester code).
7. Pin compatible with 40 pin IC packages.
8. Packaging design is suitable for the harsh working environment.
9. Support the buzzer and LED controller output.
The power features:
Power supply voltage: DC5-6V.
Working current: 50-70mA.
Operating frequency: FREQ. 100-150KHZ (standard for 125KHZ).
Range: DIS 0-150 - mm.
Decoding time: TDEC. 65-100ms.
Working temperature: TOPR 0 ~ + 70 ℃.
Storage temperature: TSTR - 55 ~ + 125 ℃.
Pin arrangement: (the DIP - 40 encapsulation format).
Pin Arrangement:
TTL232:
Compatible with FCARD one card management system. Support: Access Control System, Offline Access Control System, Access Control & Time Attendance, Guard Tour,Canteen POS System, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card management system with one card and one database.
